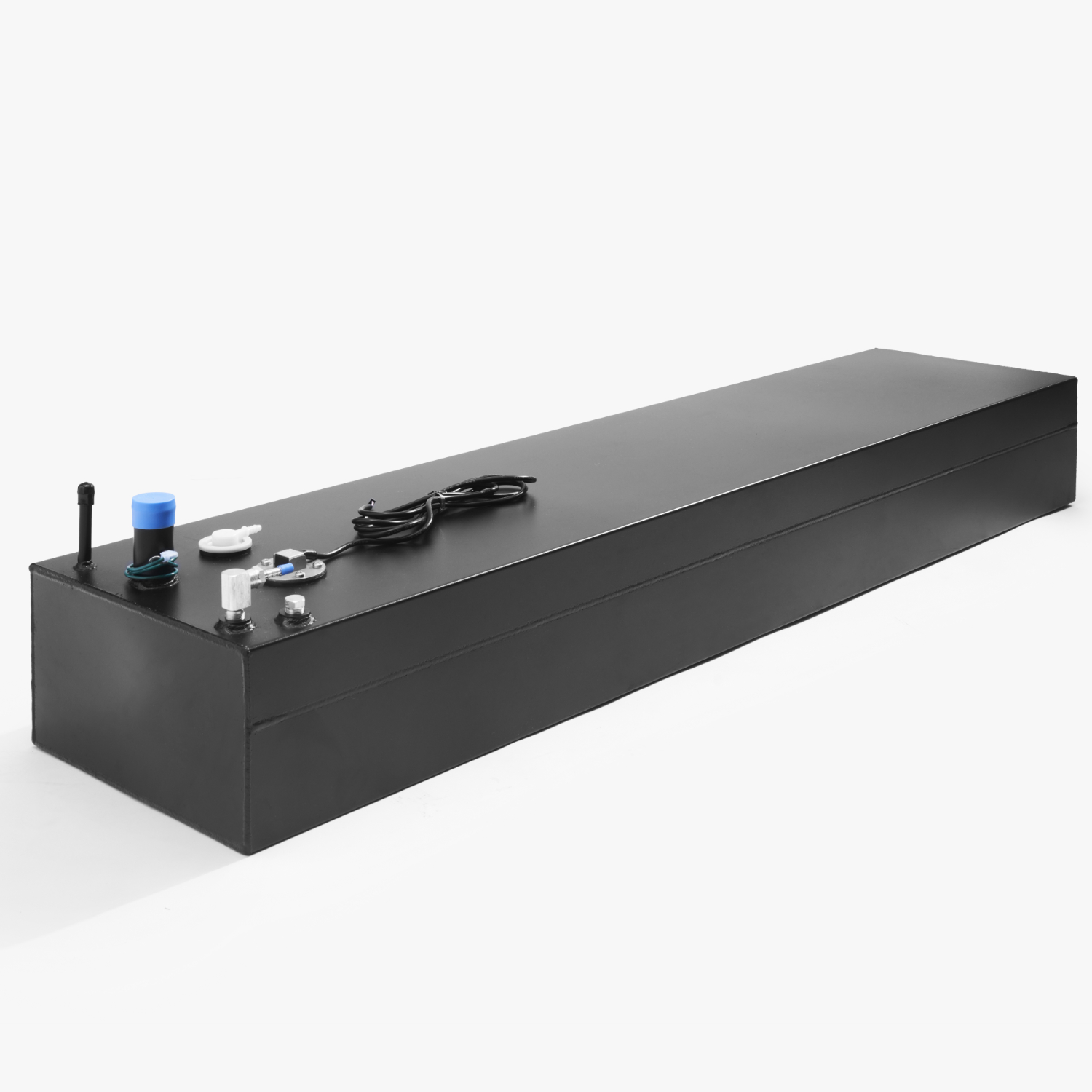

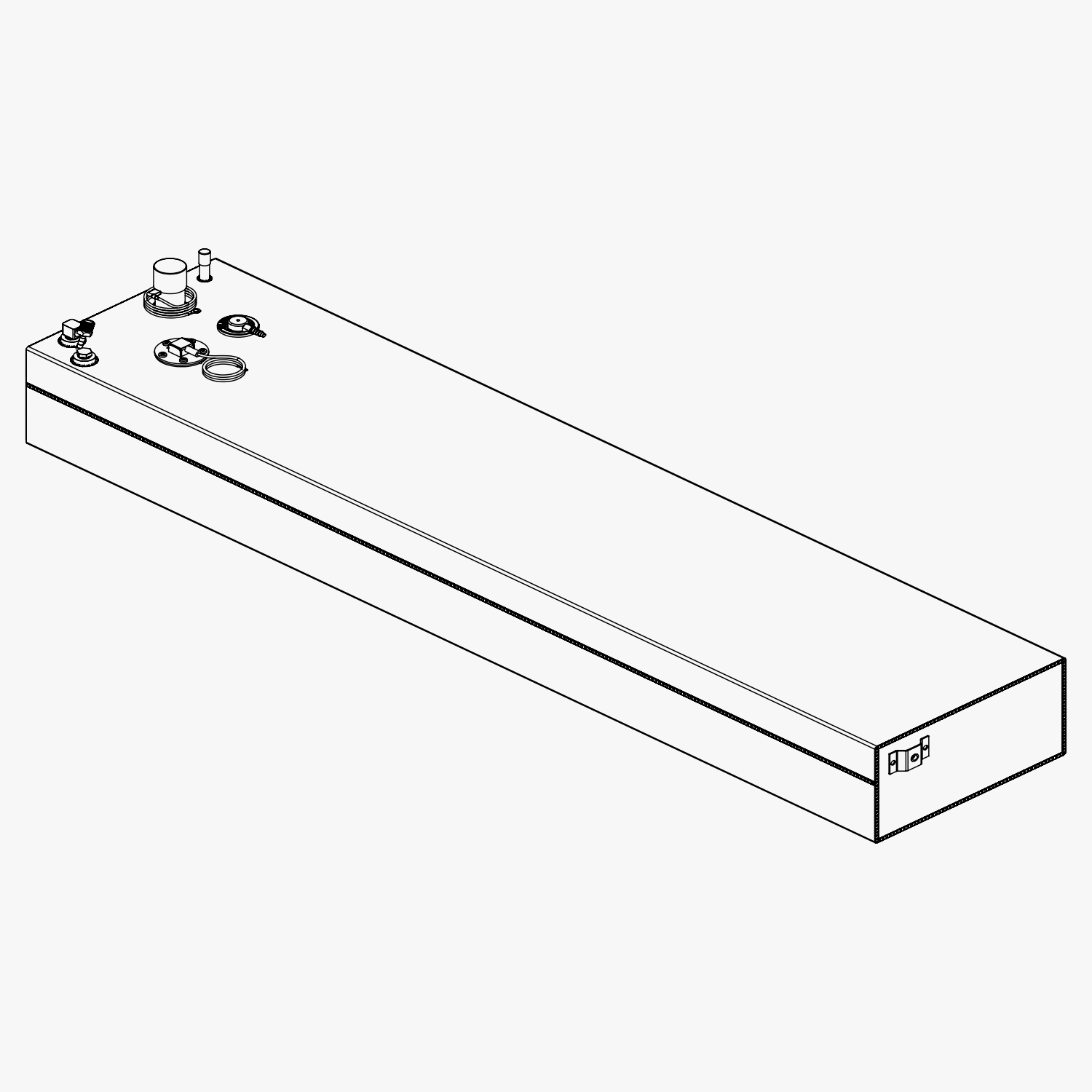

5017.26 – 25 Gallon

SKU: 5017.26 Categories: ,

Description

This fuel tank is EPA certified for use in 49 states* (excludes California). Everything you need to store fuel and run your generator is included. Simply install your fill neck to your unit, attach the hoses to your generator, secure your fuel tank, and your tank is ready for use.

This is an under chassis style fuel tank meant to be installed between the main rail of your unit. ECI will include a set of general guidelines for installation and can also be accessed here.

*Diesel version of this fuel tank can be purchased and used in California. No certification restrictions apply

Additional information

Weight 92 lbs

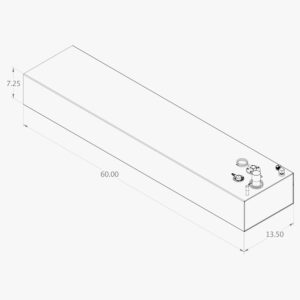

Dimensions 8.5 × 20 × 60.75 in
14 Gauge Aluminized Steel
Powder coating
Robotically Welded
Direct gauge
12V Sending Unit**, fuel cap, and carbon canister pre-assembled to tank
**12V compatible gauge sold separately (P/N 4512)
Fuel Tank with Protective Cover
Fill Neck, bezel w/ cap, hoses, and clamps (must be installed)
Carbon canister assembly (must be installed)
Mounting Brackets
Pinch Clamps
10Ft of low permeation fuel hose for generator
10Ft of low permeation hose for carbon canister
