PRO TANK SERIES

SELECT A MODEL

4463

$1,365.00$2,288.00

SKU: 4463 Categories: ,

Description

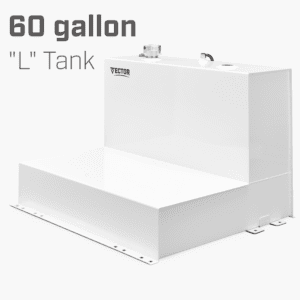

The Pro series is built right here in the United States using 11 gauge material with a durable powder coated finish. Every Pro system comes with filter and all related hardware to assemble and install it. A Spin Secure locking gas gap and a mechanical fuel gauge is also on every tank. Choosing the Pro series allows you to choose a pump and nozzle depending on your requirements. A fuel meter is also available.

Additional information

Weight 190 lbs
Dimensions 60 × 40 × 32 in
Pump/Nozzle

, , , ,

Meter

, ,

Color

Black, Sky White

Capacity: 60 Gallon
Material: 11 Gauge Steel
Anti-Slosh: Internal Baffles
Gauge: Sending Unit w/Mechanical Sight Gauge
Fuel Cap: Spin Secure Locking Fuel Cap
Pressure Relief: Die Cast ROV Valve
Construction: Laser Cut & Robotically Welded
Powder Coated Exterior
Overfill Restriction
Pressure Tested
Integrated Mounting System
Made in the USA
Tank Model # 4463-WHT, 4463-BLK Shape L
Manufacturer VECTOR Mounting Hardware Included Yes
Warranty 3 Year, Limited Warranty Pressure relief ROV valve
Capacity 63 Gallons Gas Cap Spin Secure Locking Gas Cap
Working Capacity 60 Gallons Auxillary Convertible No
Compatible Fuel Diesel DOT Approved No
Anti-Slosh Internal Baffles Product Weight 182 lbs
Material 11 Gauge Steel Shipping Weight -
Tank Finish Powdercoated (SKY WHITE)(TEXTURED BLACK) Dimensions 38 x 25 x 32.8 x 7.5 x 19
Gauge Mechanical Sending Unit Shipping Dimensions 60 x 40 x 32
EZ-8 with Manual Shut-off Nozzle
Item # 137100-01 Nozzle Type 3/4 in. FNPT Inlet. Manual Shut-off, Unleaded
Pump Model # EZ-8 Dispensing Hose 10 ft. x 5/8 in.
Manufacturer GPI Power Cord 15 ft, Factory Installed
Flow Rate 8 GPM (Gas station equivalent) Inlet 1 in. FNPT
Duty Cycle 15 min on / 30 min off Outlet 3/4 in. FNPT
Working Pressure 15 PSI (1.03 bar) Mounting Type Direct Mount, 2 in. male NPT
Max Working Temp -20° F to 125° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Corrosion Resistant Diecast Aluminum
Fuse 20 amps Finish Powder Coated
Type Rotary Gear Warranty 3 Year
Motor 2100, 1/10hp Weight 16 lbs
M-150S with Manual Shut-off Nozzle
Item # 110000-99 Nozzle Type 3/4 in. FNPT Inlet. Manual Shut-off, Unleaded
Pump Model # M-150S Dispensing Hose 12 ft. x 3/4 in.
Manufacturer GPI Power Cord 18 ft, Factory Installed
Flow Rate 15 GPM (57 L/min) Inlet 1 in. FNPT
Duty Cycle 30 min on / 30 min off Outlet 3/4 in. FNPT
Working Pressure 15 PSI (1.03 bar) Mounting Type Spin Collar, 2 in. male NPT
Max Working Temp -20° F to 125° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Corrosion Resistant Diecast Aluminum
Fuse 25 amps Finish Powder Coated
Type Rotary Gear Warranty 3 Year
Motor 1900, 1/5 hp Weight 23 lbs
M-150S with Automatic Shut-off Nozzle
Item # 110000-100 Nozzle Type 3/4 in. FNPT Inlet. Automatic Shut-off, Unleaded
Pump Model # M-150S Dispensing Hose 12 ft. x 3/4 in.
Manufacturer GPI Power Cord 18 ft, Factory Installed
Flow Rate 15 GPM (57 L/min) Inlet 1 in. FNPT
Duty Cycle 30 min on / 30 min off Outlet 3/4 in. FNPT
Working Pressure 15 PSI (1.03 bar) Mounting Type Spin Collar, 2 in. male NPT
Max Working Temp -20° F to 125° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Corrosion Resistant Diecast Aluminum
Fuse 25 amps Finish Powder Coated
Type Rotary Gear Warranty 3 Year
Motor 1900, 1/5 hp Weight 24 lbs
G-20 with Automatic Shut-off Nozzle
Item # 162000-03 Nozzle Type 1 in. FNPT Inlet. Automatic Shut-off, Diesel
Pump Model # G-20 Dispensing Hose 14 ft. x 1 in.
Manufacturer GPI Power Cord 18 ft, Factory Installed
Flow Rate 20 GPM (76 L/min) Inlet 1 in. FNPT
Duty Cycle 30 min on / 30 min off Outlet 1 in. FNPT
Working Pressure 12 PSI (0.82 bar) Mounting Type Spin Collar, 2 in. male NPT
Max Working Temp -22° F to 131° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Corrosion Resistant Diecast Aluminum
Fuse 40 amps Finish Powder Coated
Type Rotary Gear Warranty Limited Lifetime Warranty
Motor 2000, 4/10 hp Weight 34.8 lbs
V-25 with Automatic Shut-off Nozzle
Item # 170000-03 Nozzle Type 1 in. FNPT Inlet. Automatic Shut-off, Diesel
Pump Model # V-25 Dispensing Hose 18 ft. x 1 in.
Manufacturer GPI Power Cord 18 ft, Factory Installed
Flow Rate 25 GPM (94 L/min) Inlet 1 in. FNPT
Duty Cycle 30 min on / 30 min off Outlet 1 in. FNPT
Working Pressure 20 PSI (1.38 bar) Mounting Type Direct Mount, 2 in. male NPT
Max Working Temp -20° F to 125° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Cast Iron
Fuse 40 amps Finish Powder Coated
Type Carbon Vane Warranty 5 Year pump warranty
Motor 1620, 4/10 hp Weight 57 lbs
0A1 Digital Fuel Meter
Item # 113255-1 Totals Batch & Cumulative Totals, 4-digit LCD
Meter Model # 01A31GM Field Calibration No
Manufacturer GPI Powered by (2) AAA Alkaline Batteries
Flow Range 3-30 GPM (10-100 L/min) Inlet 1 in. FNPT
Accuracy +/- 2.5% Outlet 1 in. FNPT
Working Pressure 300 PSI (20.7 bar) Type Turbine
Max Working Temp 14° to 130° F Housing Corrosion Resistant Diecast Aluminum
Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene Warranty 2 Year
M30 Mechanical Fuel Meter
Item # 165100-01 Totals Batch Total up to 999.9, Cumulative up to 999,999.9
Meter Model # M30-G8N Field Calibration Yes
Manufacturer GPI Compatible Pump Models G-20; V-25
Flow Range 5 - 30 GPM (19-114 L/mn) Inlet 1 in. FNPT
Accuracy +/- 2% Outlet 1 in. FNPT
Working Pressure 50 PSI (3.45 bar) Type Nutating Disc
Max Working Temp -20° F to 125° F Housing Corrosion Resistant Diecast Aluminum
Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene Warranty 5 Year
(1) 60 – Gal Tank
(1) Pump
(1) Hose
(1) Nozzle
(1) Fuel Filter
(1) Spinsecure Fuel Cap
(1) Mechanical Sending Unit
(1) ROV Valve
(1) Mounting hardware
(1) Meter (Optional)

FUEL WITH
CONFIDENCE

Practical and versatile, these tanks are built to work day in and day out. Made from heavy-duty 11-gauge steel, a premium powder coat finish and robotically welded seams these tanks are designed to outlast the truck bed they’re mounted to.

Plus, every Vector Tank comes with a 3-Year, Limited Warranty!

VECTOR TANK PRO

6965-WHT

EASY INSTALLATION

Read Installation Guide

With all components included with the product, the Vector Tank Elite installs in little to no time. With an integrated mounting system and all mounting hardware included, which minimizes your set up time.
