ELITE TANK SERIES

SELECT A MODEL

6912

$1,799.00

SKU: 6912 Categories: ,

Sorry we are down for maintenance, if you would like to place an order please call (800) 418-4278 or contact your local dealer here. For Toy-Hauler orders please call (877) 685-8602.

Description

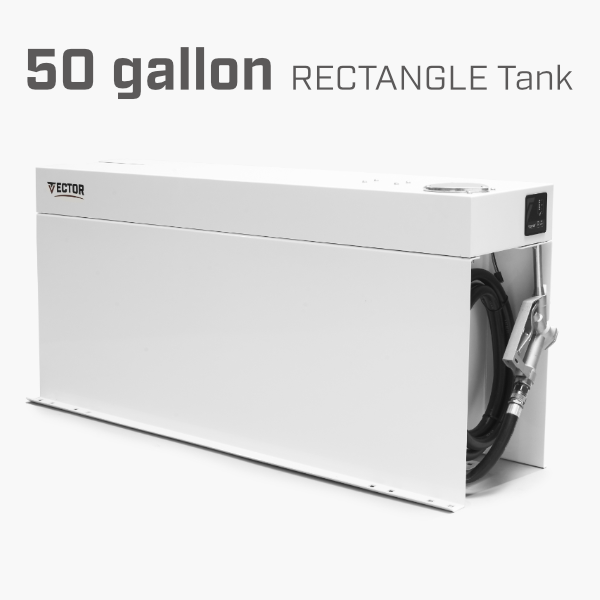

The Vector Elite refueling system is the only complete refueling system on the market. The system is built using 11 gauge material along with an integrated replaceable fuel filter, sending unit, locking gas cap and a control panel that allows you to lock the system when not in use. Also included is all required mounting hardware and a wiring harness. No assembly required. Simply secure tank and make the electrical connection. The Vector system has a Department of Transportation (DOT) certification allowing the transportation and dispensing of gasoline, diesel and kerosene.

Additional information

Weight 194 lbs
Dimensions 55 × 25.75 × 15.8 in
Color

Black, Sky White

Capacity: 55 Gallon
Pump: GPI - G8 Rotary Gear 8 GPM
Nozzle: 3/4" Manual, Diecast Aluminum
Fill Hose: 3/4" x 12'
Fuel Filter: Included & Replaceable
Fuel Cap: Locking
Control Panel: Fuel Gauge, Safety Lockout, 5 Minute Timer, Automatic Reversing Feature After Each Use.
Fuel Type: Gasoline, Diesel, Karosene
Material: 11 Gauge Steel
Made in the USA
DOT Approved
SKU # 6912 Shape Rectangular
Manufacturer VECTOR Hose 3/4" 12ft
Warranty 3 Year, Limited Warranty Pressure relief ROV valve
Capacity 55 Gallons Locking Gas Cap Yes
Working Capacity 52 Gallons Replaceable Fuel Filter Yes
Compatible Fuel Gas, Diesel, Karosene Power Cord 12AWG - 20ft w/20 Amp Fuse
DOT Approved Yes Mounting Hardware Included Yes
Material 11 Gauge Steel Product Weight 202 lbs.
Tank Finish Powdercoated (Charcoal Gray)(RAL 7024) Shipping Weight 257 lbs.
Cover Finish Powdercoated (Telegray)(RAL 7047) Overal Dimensions 55 x 25.72 x 15.8
Nozzle 3/4" Manual w/swivel fitting Shipping Dimensions 60 x 40 x 32
Pump GPM 8 Auxiliary Convertible No
(1) 55 - Gal Tank
(1) 8 GPM pump
(1) LED Controller
(1) 12ft hose
(1) Nozzle
(1) Fuel Filter
(1) Locking Fuel Cap
(1) Mounting hardware
(1) 20ft Wiring Assembly
(1) Quick Start Guide & DOT Cert.

FUEL WITH
CONFIDENCE

Powered by GPI Fuel Transfer Pumps, the Vector Tank Elite has an 8 gallons-per-minute flow rate, a gas station equivalent. It also features an easily accessible fuel filter, locking gas cap and fill port manifold with an ROV valve for pressure relief.

Plus, every Vector Tank comes with a 3-Year, Limited Warranty!

VECTOR TANK ELITE

6912-WHT

EASY INSTALLATION

Read Installation Guide

With all components included with the product, the Vector Tank Elite installs in little to no time. With an integrated mounting system and all mounting hardware included, which minimizes your set up time.
