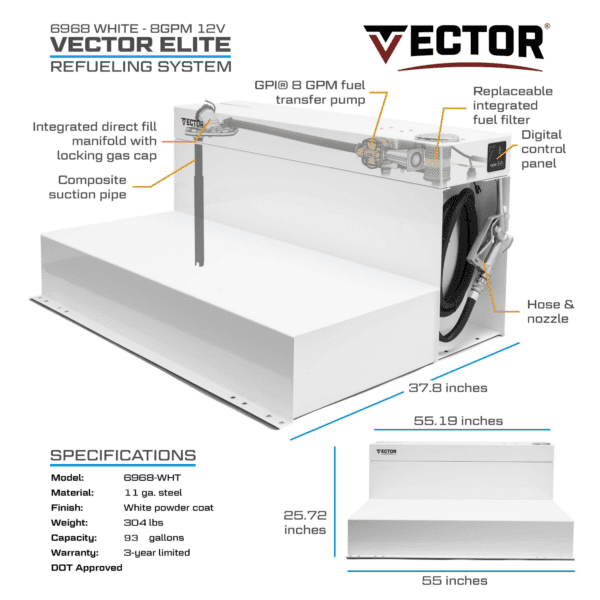

The Vector Elite refueling system is the only complete refueling system on the market. The system is built using 11 gauge material along with an integrated replaceable fuel filter, sending unit, locking gas cap and a control panel that allows you to lock the system when not in use. Also included is all required mounting hardware and a wiring harness. No assembly required. Simply secure tank and make the electrical connection. The Vector system has a Department of Transportation (DOT) certification allowing the transportation and dispensing of gasoline, diesel and kerosene.
Features
| Capacity: | 100 Gallon |
| Pump: | GPI - G8 Rotary Gear 8 GPM |
| Nozzle: | 3/4" Manual, Diecast Aluminum |
| Fill Hose: | 3/4" x 12' |
| Fuel Filter: | Included & Replaceable |
| Fuel Cap: | Locking |
| Control Panel: | Fuel Gauge, Safety Lockout, 5 Minute Timer, Automatic Reversing Feature After Each Use. |
| Fuel Type: | Gasoline, Diesel, Karosene |
| Material: | 11 Gauge Steel |
| Made in the USA | |
| DOT Approved |
Specifications
| SKU # | 6968 | Shape | L |
| Manufacturer | VECTOR | Hose | 3/4" 12ft |
| Warranty | 3 Year, Limited Warranty | Pressure relief | ROV valve |
| Capacity | 100 Gallons | Locking Gas Cap | Yes |
| Working Capacity | 95 Gallons | Replaceable Fuel Filter | Yes |
| Pump GPM | 8 | Auxiliary Convertible | No |
| Compatible Fuel | Gas, Diesel, Karosene | Power Cord | 12AWG - 20ft w/20 Amp Fuse |
| DOT Approved | Yes | Mounting Hardware Included | Yes |
| Material | 11 Gauge Steel | Product Weight | 304 lbs. |
| Tank Finish | Powdercoated (Charcoal Gray)(RAL 7024) | Shipping Weight | 368 lbs. |
| Cover Finish | Powdercoated (Telegray)(RAL 7047) | Overal Dimensions | 55 x 25.72 x x 37.8 x 9 x 22 |
| Nozzle | 3/4" Manual w/swivel fitting | Shipping Dimensions | 60 x 48 x 32 |
Package Contents
Elite 6968 Package Contents
| (1) 100 - Gal Tank |
| (1) 8 GPM pump |
| (1) LED Controller |
| (1) 12ft hose |
| (1) Nozzle |
| (1) Fuel Filter |
| (1) Locking Fuel Cap |
| (1) Mounting hardware |
| (1) 20ft Wiring Assembly |
| (1) Quick Start Guide & DOT Cert. |
