SKU: 6970 Categories: ,

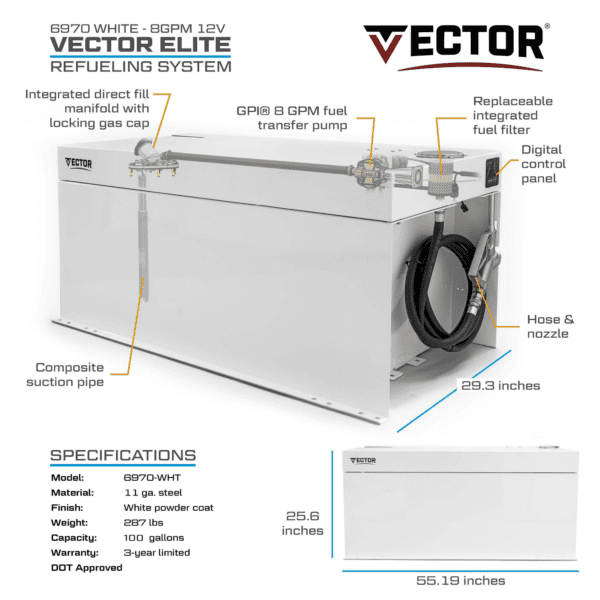

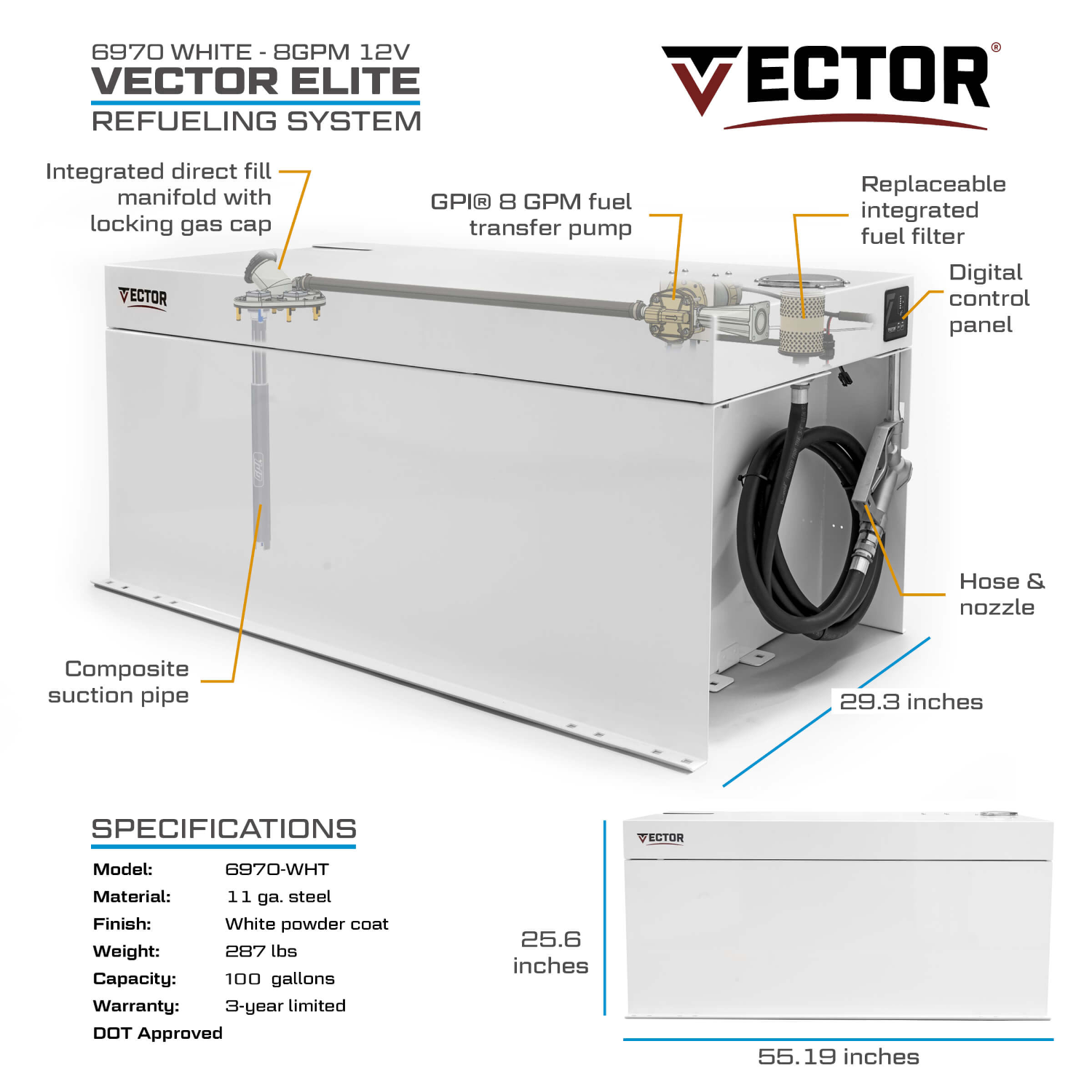

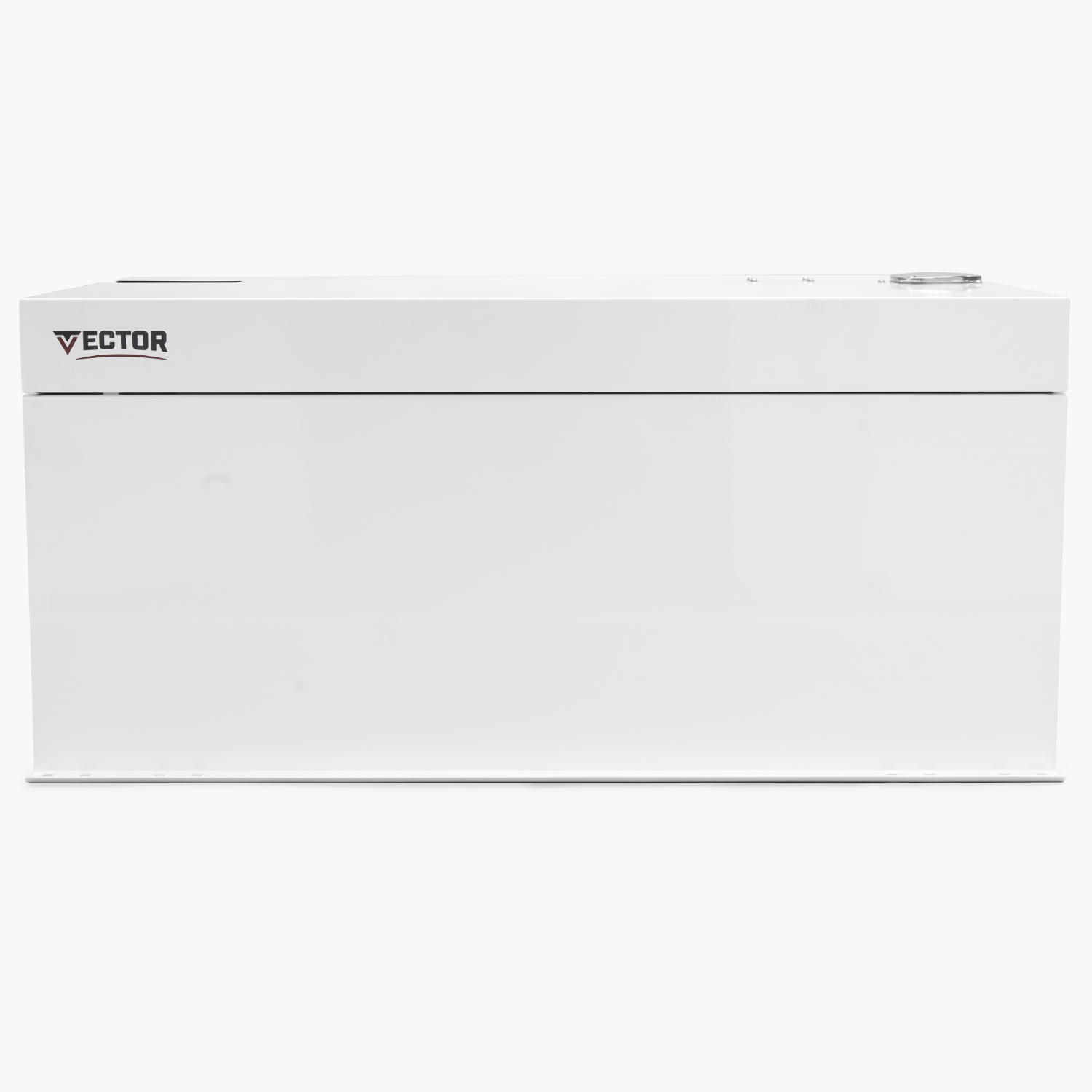

The Vector Elite refueling system is the only complete refueling system on the market. The system is built using 11 gauge material along with an integrated replaceable fuel filter, sending unit, locking gas cap and a control panel that allows you to lock the system when not in use. Also included is all required mounting hardware and a wiring harness. No assembly required. Simply secure tank and make the electrical connection. The Vector system has a Department of Transportation (DOT) certification allowing the transportation and dispensing of gasoline, diesel and kerosene.

Additional information

Weight 278 lbs

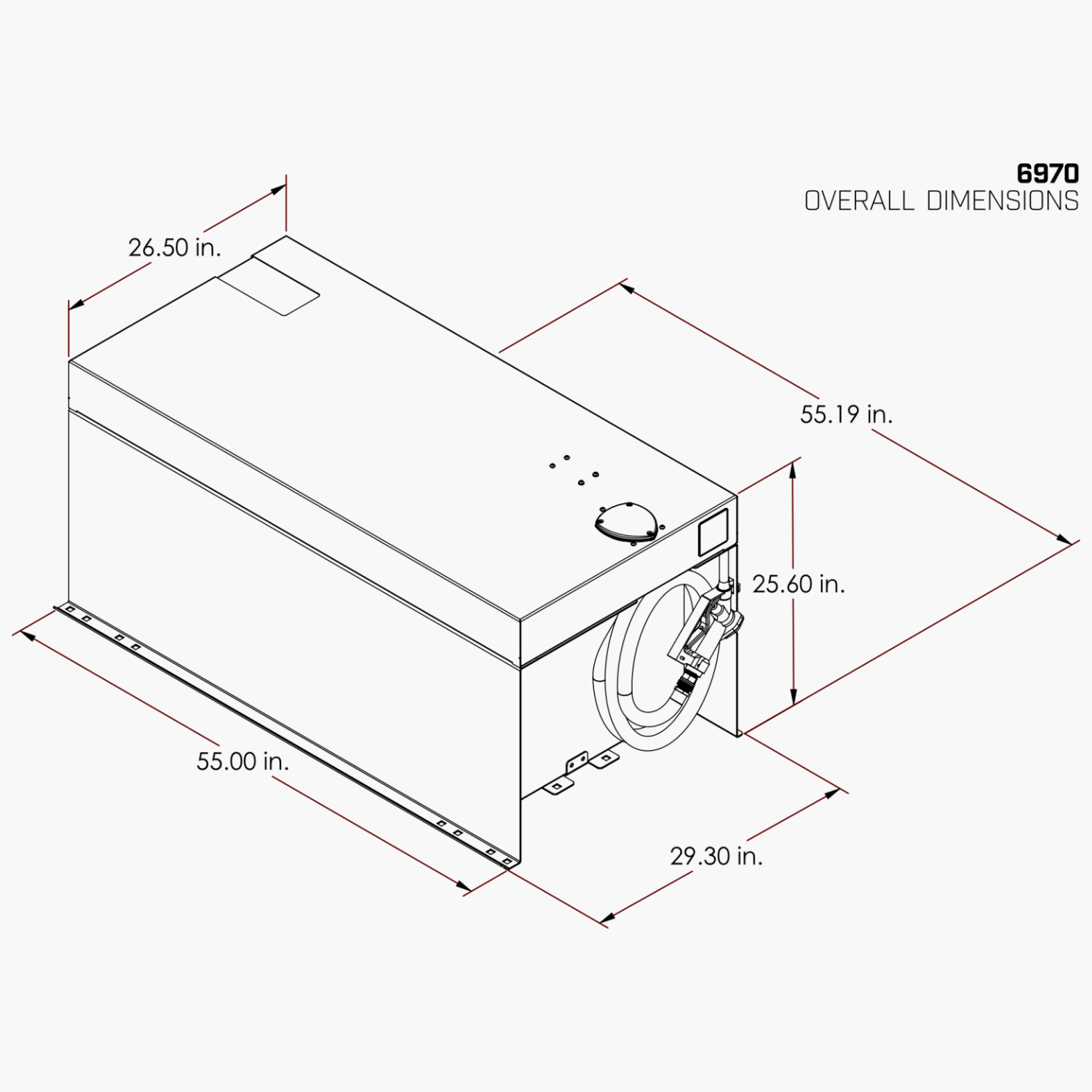

Dimensions 55 × 25.53 × 29.30 in

Black, Grey, Sky White

Capacity: 100 Gallon
Pump: GPI - G8 Rotary Gear 8 GPM
Nozzle: 3/4" Manual, Diecast Aluminum
Fill Hose: 3/4" x 12'
Fuel Filter: Included & Replaceable

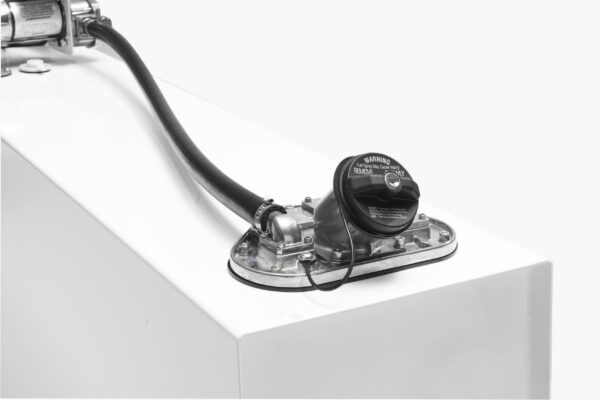

Fuel Cap: Locking

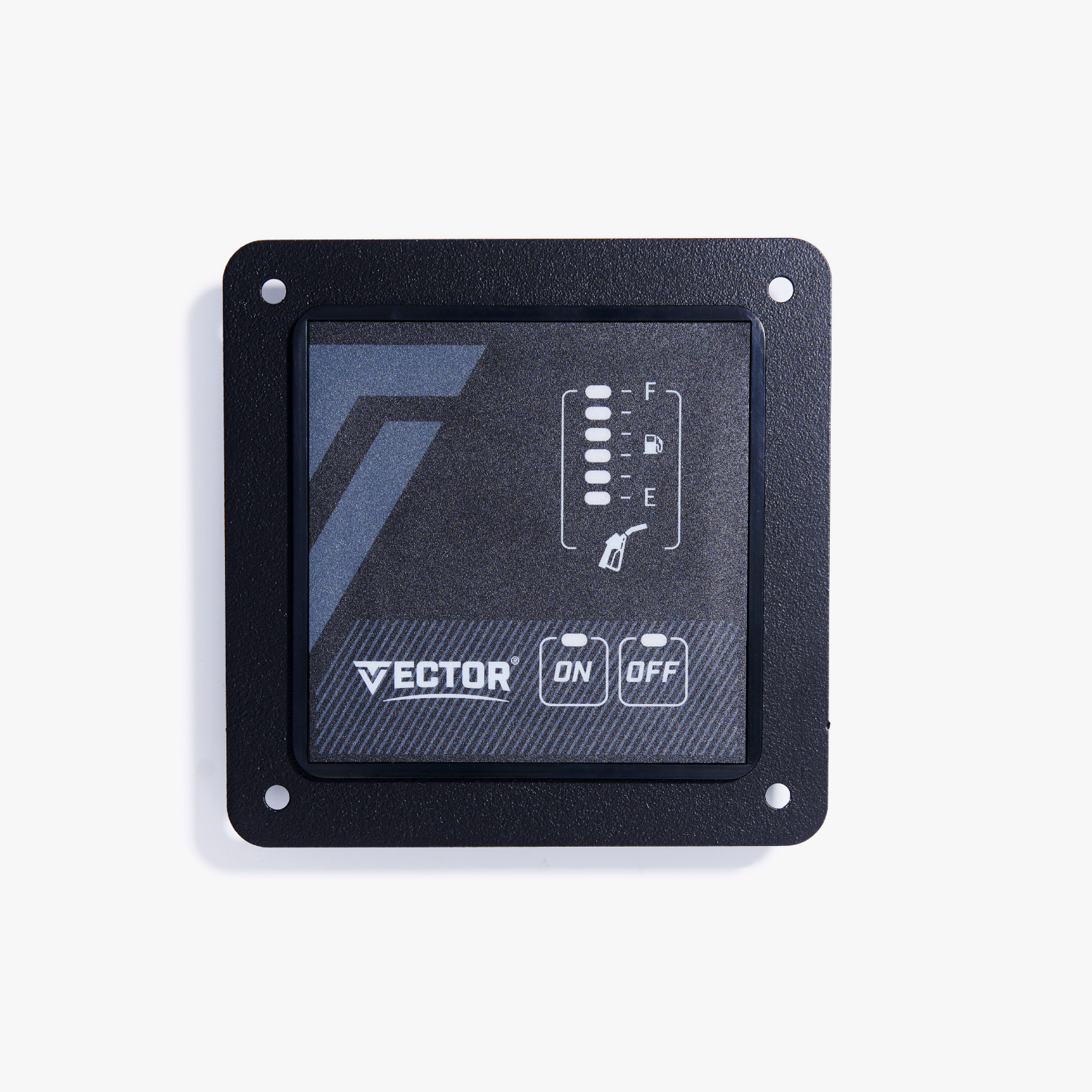

Control Panel: Fuel Gauge, Safety Lockout, 5 Minute Timer, Automatic Reversing Feature After Each Use.
Fuel Type: Gasoline, Diesel, Karosene
Material: 11 Gauge Steel
Made in the USA
DOT Approved
SKU # 6970 Shape Rectangle
Manufacturer VECTOR Hose 3/4" 12ft
Warranty 3 Year, Limited Warranty Pressure relief ROV valve
Capacity 108 Gallons Locking Gas Cap Yes
Working Capacity 100 Gallons Replaceable Fuel Filter Yes
Pump GPM 8 Auxiliary Convertible No
Compatible Fuel Gas, Diesel, Karosene Power Cord 12AWG - 20ft w/20 Amp Fuse
DOT Approved Yes Mounting Hardware Included Yes
Material 11 Gauge Steel Product Weight 287 lbs.
White Finish Powdercoated (Sky White)(PFW510S9) Shipping Weight 342 lbs.
Black Finish Powdercoated (Mini Textured)(HFB605T3) Overal Dimensions 55 x 25.60 x 29.30
Nozzle 3/4" Manual w/swivel fitting Shipping Dimensions 60 x 40 x 32
(1) 100 - Gal Tank
(1) 8 GPM pump
(1) LED Controller
(1) 12ft hose
(1) Nozzle
(1) Fuel Filter
(1) Locking Fuel Cap
(1) Mounting hardware
(1) 20ft Wiring Assembly
(1) Quick Start Guide & DOT Cert.
