ELITE TANK SERIES
Sale!
6968
Price range: $1,750.00 through $2,389.00
Description

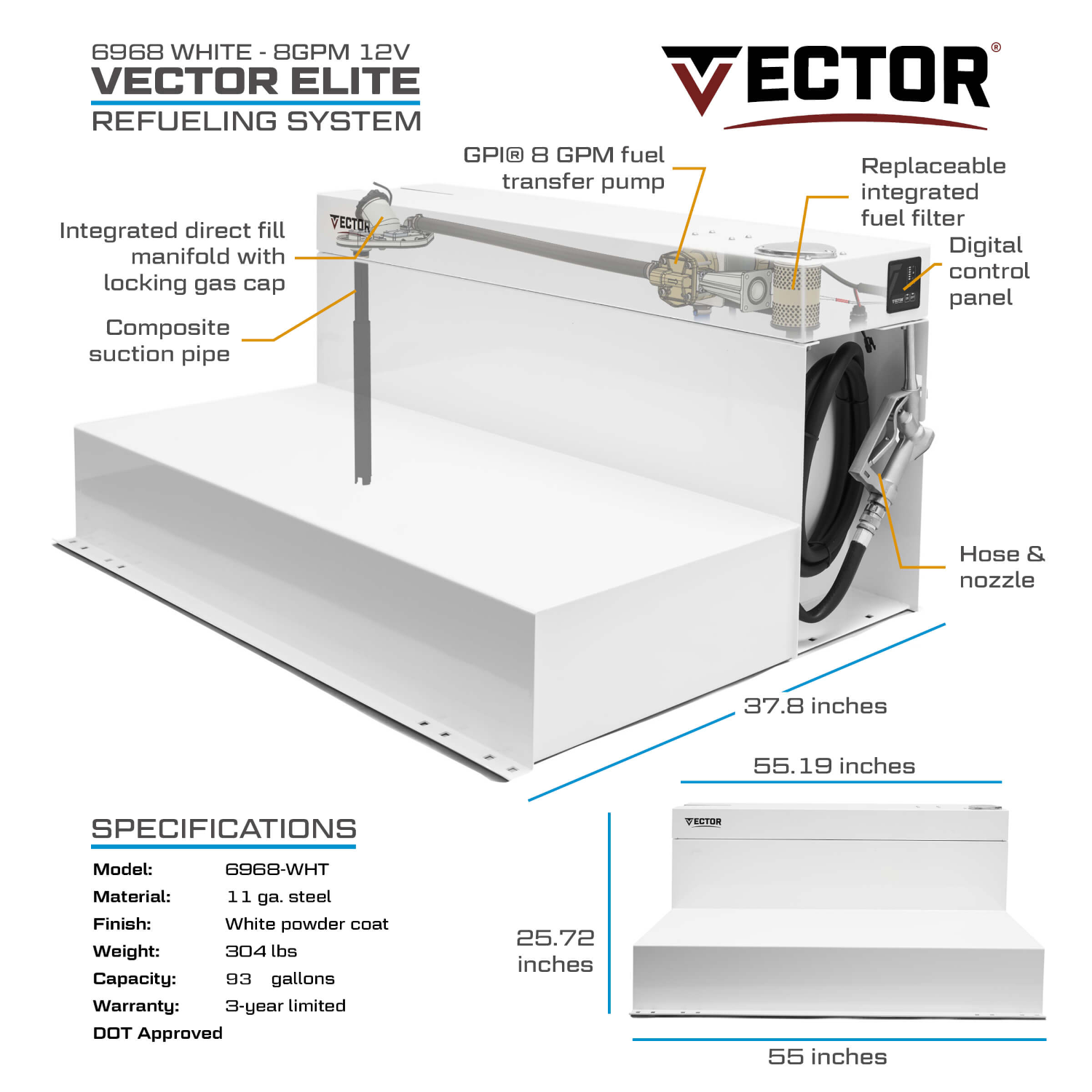

The Vector Elite refueling system is the only complete refueling system on the market. The system is built using 11 gauge material along with an integrated replaceable fuel filter, sending unit, locking gas cap and a control panel that allows you to lock the system when not in use. All Elite tanks come standard with an integrated GPI® 8 gallons-per-minute transfer pump, giving you the same flow rate as a gas station. Also included is all required mounting hardware and a wiring harness. No assembly required. Simply secure tank and make the electrical connection. The Vector system has a Department of Transportation (DOT) certification allowing the transportation and dispensing of gasoline, diesel and kerosene.
Additional information
| Weight | 293 lbs |
|---|---|
| Dimensions | 55 × 25.66 × 37.8 in |
| Color | Black, Grey, Sky White |

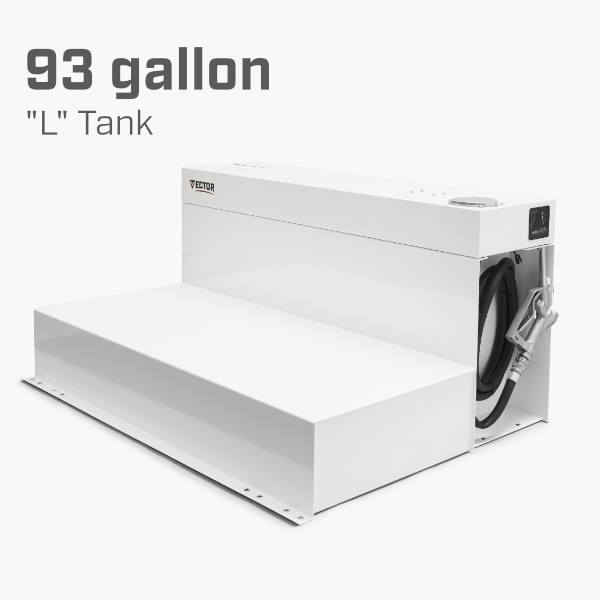

| Capacity: | 93 Gallon |
| Pump: | GPI - G8 Rotary Gear 8 GPM |
| Nozzle: | 3/4" Manual, Diecast Aluminum |
| Fill Hose: | 3/4" x 12' |
| Fuel Filter: | Included & Replaceable |
| Fuel Cap: | Locking |

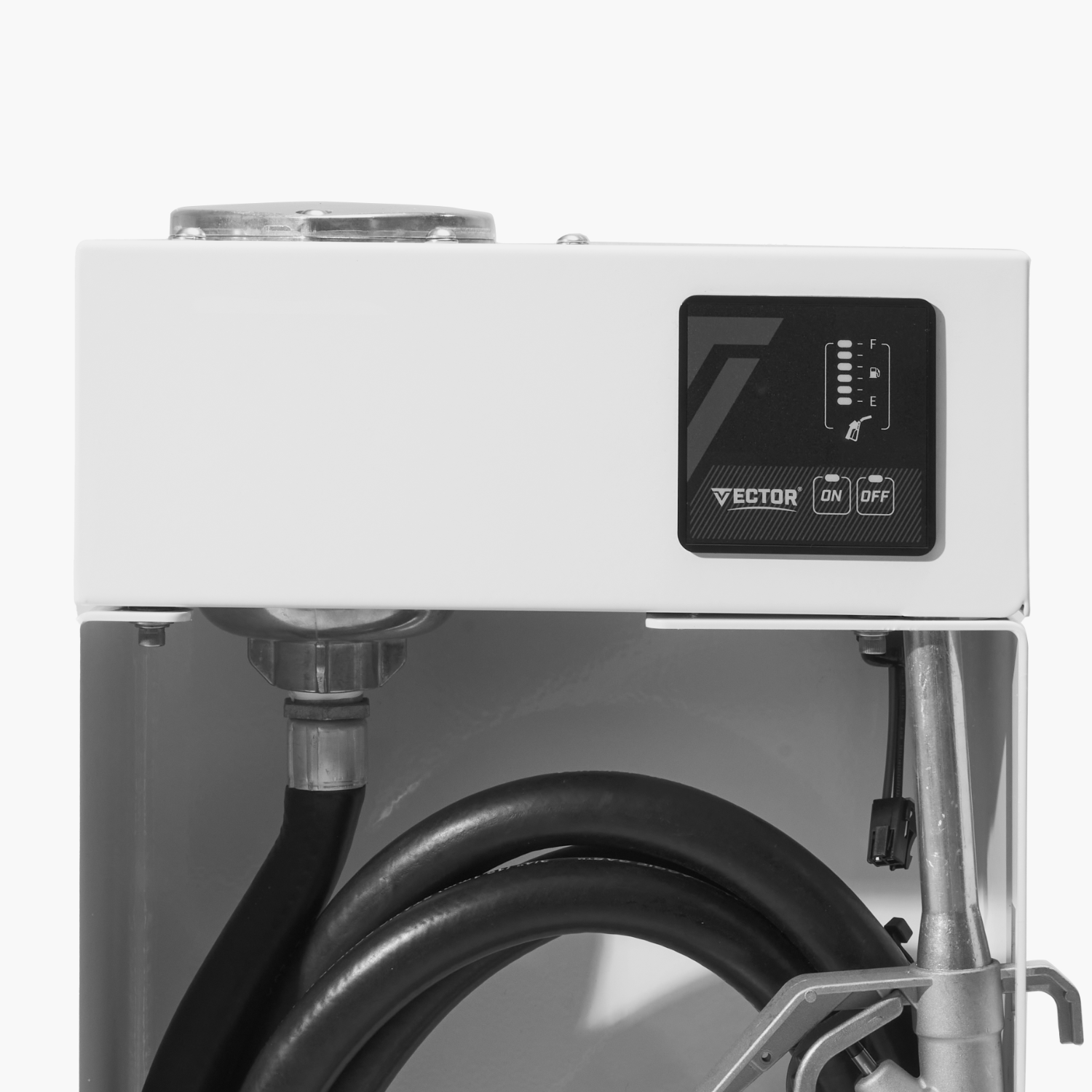

| Control Panel: | Fuel Gauge, Safety Lockout, 5 Minute Timer, Automatic Reversing Feature After Each Use. |
| Fuel Type: | Gasoline, Diesel, Karosene |
| Material: | 11 Gauge Steel |
| Made in the USA | |
| DOT Approved |
| SKU # | 6968 | Shape | L |
| Manufacturer | VECTOR | Hose | 3/4" 12ft |
| Warranty | 3 Year, Limited Warranty | Pressure relief | ROV valve |
| Capacity | 96 Gallons | Locking Gas Cap | Yes |
| Working Capacity | 93 Gallons | Replaceable Fuel Filter | Yes |
| Pump GPM | 8 | Auxiliary Convertible | No |
| Compatible Fuel | Gas, Diesel, Karosene | Power Cord | 12AWG - 20ft w/20 Amp Fuse |
| DOT Approved | Yes | Mounting Hardware Included | Yes |
| Material | 11 Gauge Steel | Product Weight | 304 lbs. |
| White Finish | Powdercoated (Sky White)(PFW510S9) | Shipping Weight | 368 lbs. |

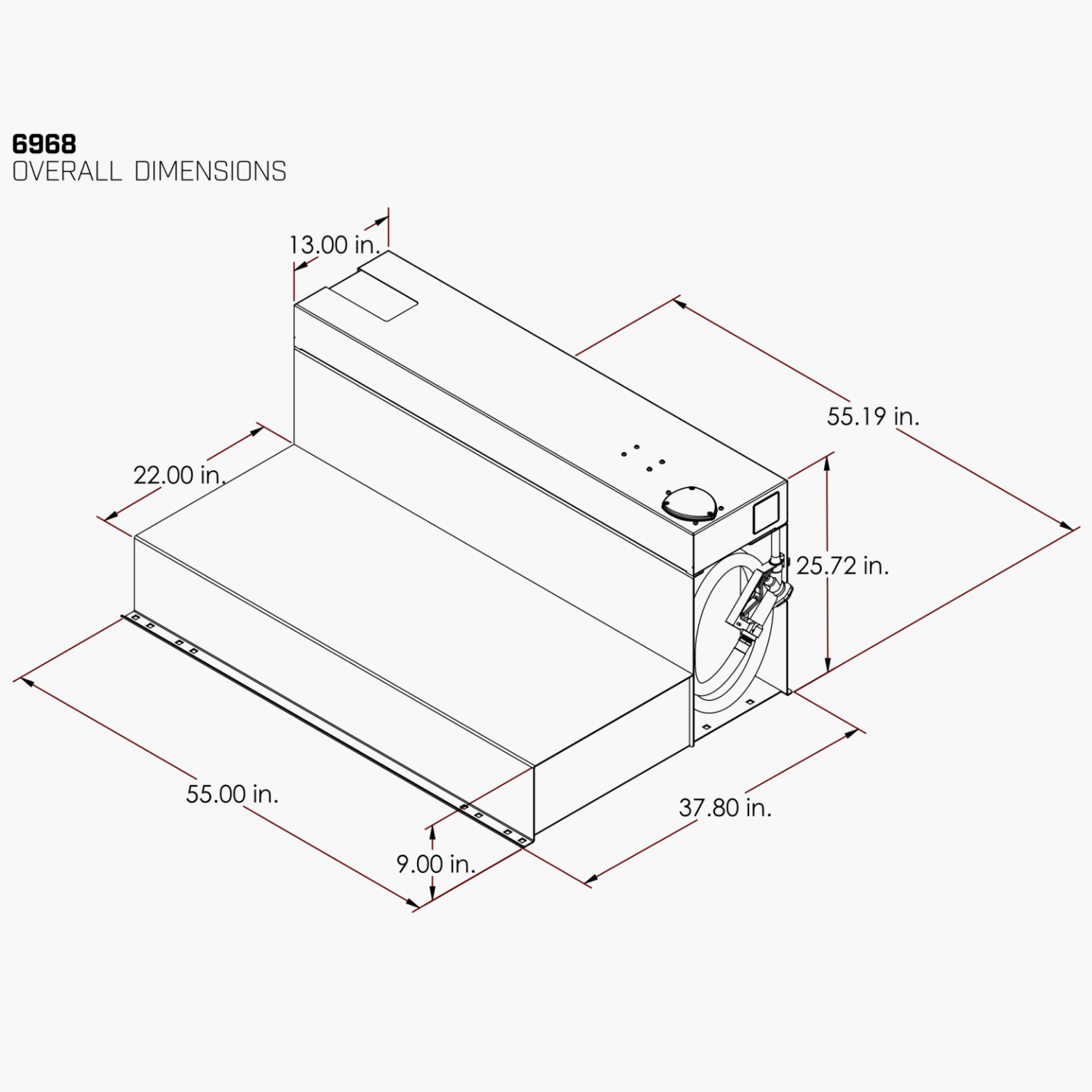

| Black Finish | Powdercoated (Mini Textured)(HFB605T3) | Overal Dimensions | 55 x 25.72 x x 37.8 x 9 x 22 |
| Nozzle | 3/4" Manual w/swivel fitting | Shipping Dimensions | 60 x 48 x 32 |
| (1) 93 - Gal Tank |
| (1) 8 GPM pump |
| (1) LED Controller |
| (1) 12ft hose |
| (1) Nozzle |
| (1) Fuel Filter |
| (1) Locking Fuel Cap |
| (1) Mounting hardware |
| (1) 20ft Wiring Assembly |
| (1) Quick Start Guide & DOT Cert. |
[rev_slider slidertitle=”Elite Slider” alias=”elite-slider”]
FUEL WITH
CONFIDENCE

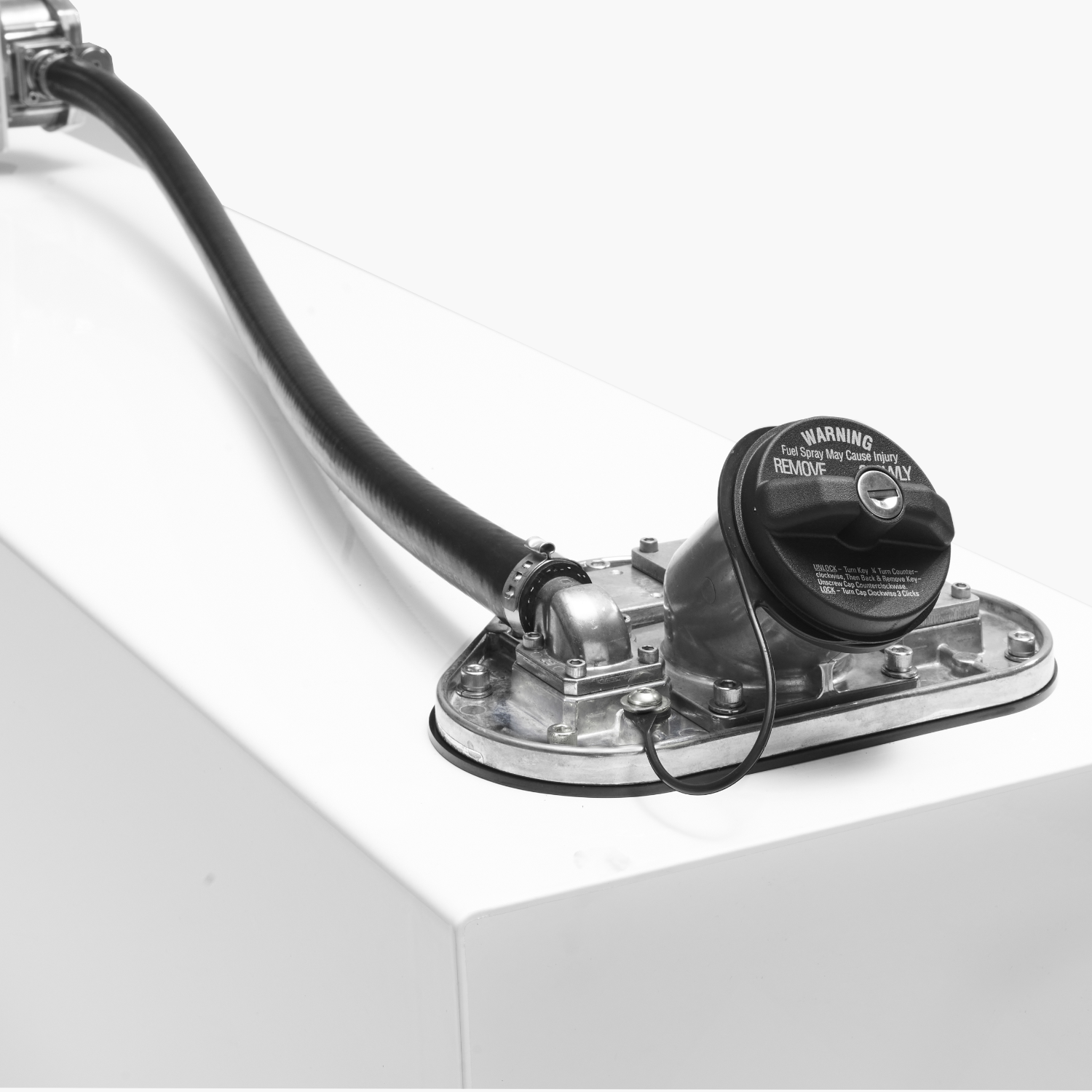

Powered by GPI Fuel Transfer Pumps, the Vector Tank Elite has an 8 gallons-per-minute flow rate, a gas station equivalent. It also features an easily accessible fuel filter, locking gas cap and fill port manifold with an ROV valve for pressure relief.
Plus, every Vector Tank comes with a 3-Year, Limited Warranty!

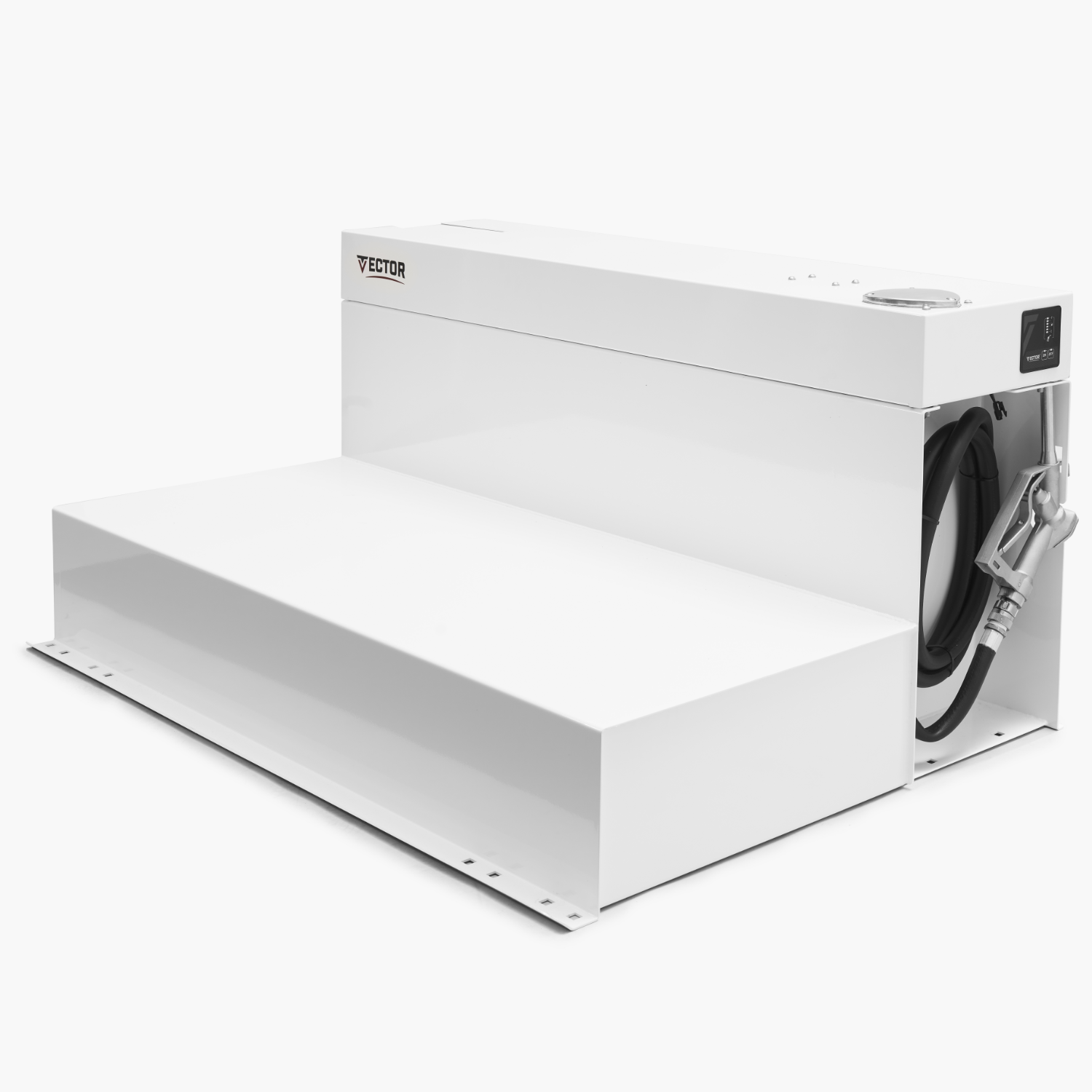

VECTOR TANK ELITE
6912-WHT
EASY INSTALLATION
With all components included with the product, the Vector Tank Elite installs in little to no time. With an integrated mounting system and all mounting hardware included, which minimizes your set up time.
