The Pro series is built right here in the United States using 11 gauge material with a durable powder coated finish. Every Pro system comes with filter and all related hardware to assemble and install it. A Spin Secure locking gas gap and a mechanical fuel gauge is also on every tank. Choosing the Pro series allows you to choose a pump and nozzle depending on your requirements. A fuel meter is also available.
Additional information
| Weight | 182 lbs |
|---|---|
| Dimensions | 60 × 40 × 32 in |
| Pump/Nozzle | EZ-8 8 GPM Pump, M-150S 15 GPM Pump / Manual Shut-Off, M-150S 15 GPM Pump / Auto Shut-Off, G-20 20 GPM Pump, V-25 25 GPM Pump |
| Meter | No Meter, 0A1 Digital Fuel Meter, M30 Mechanical Fuel Meter |
Features
Pro Features: 66 Gallon
| Capacity: | 66 Gallon |
| Material: | 11 Gauge Steel |
| Anti-Slosh: | Internal Baffles |
| Gauge: | Sending Unit w/Mechanical Sight Gauge |
| Fuel Cap: | Spin Secure Locking Fuel Cap |
| Pressure Relief: | Die Cast ROV Valve |
| Construction: | Laser Cut & Robotically Welded |
| Powder Coated Exterior | |
| Overfill Restriction | |
| Pressure Tested | |
| Integrated Mounting System | |
| Made in the USA |
Tank Specifications
| Tank Model # | 4463-GRY | Shape | L |
| Manufacturer | VECTOR | Mounting Hardware Included | Yes |
| Warranty | 3 Year, Limited Warranty | Pressure relief | ROV valve |
| Capacity | 66 Gallons | Gas Cap | Spin Secure Locking Gas Cap |
| Working Capacity | 63 Gallons | Auxillary Convertible | No |
| Compatible Fuel | Diesel | DOT Approved | No |
| Anti-Slosh | Internal Baffles | Product Weight | 182 lbs |
| Material | 11 Gauge Steel | Shipping Weight | - |

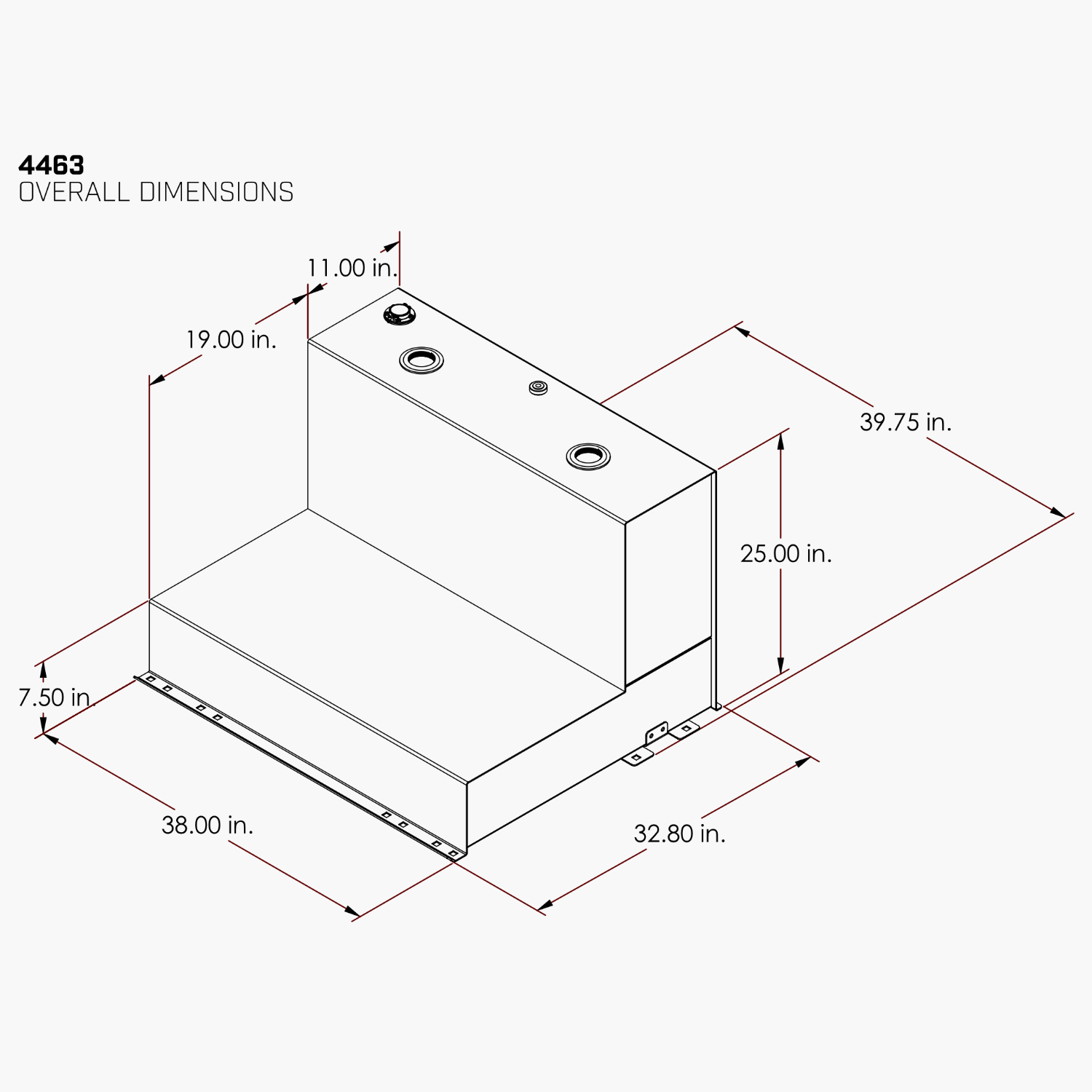

| Tank Finish | Powdercoated (ICE Gray)(PPG PCT79105) | Dimensions | 38 x 25 x 32.8 x 7.5 x 19 |
| Gauge | Mechanical Sending Unit | Shipping Dimensions | 60 x 40 x 32 |
Pump Specifications
EZ-8 with Manual Shut-off Nozzle
| Item # | 137100-01 | Nozzle Type | 3/4 in. FNPT Inlet. Manual Shut-off, Unleaded |
| Pump Model # | EZ-8 | Dispensing Hose | 10 ft. x 5/8 in. |
| Manufacturer | GPI | Power Cord | 15 ft, Factory Installed |
| Flow Rate | 8 GPM (Gas station equivalent) | Inlet | 1 in. FNPT |
| Duty Cycle | 15 min on / 30 min off | Outlet | 3/4 in. FNPT |
| Working Pressure | 15 PSI (1.03 bar) | Mounting Type | Direct Mount, 2 in. male NPT |
| Max Working Temp | -20° F to 125° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Corrosion Resistant Diecast Aluminum |
| Fuse | 20 amps | Finish | Powder Coated |
| Type | Rotary Gear | Warranty | 3 Year |
| Motor | 2100, 1/10hp | Weight | 16 lbs |
M-150S with Manual Shut-off Nozzle
| Item # | 110000-99 | Nozzle Type | 3/4 in. FNPT Inlet. Manual Shut-off, Unleaded |
| Pump Model # | M-150S | Dispensing Hose | 12 ft. x 3/4 in. |
| Manufacturer | GPI | Power Cord | 18 ft, Factory Installed |
| Flow Rate | 15 GPM (57 L/min) | Inlet | 1 in. FNPT |
| Duty Cycle | 30 min on / 30 min off | Outlet | 3/4 in. FNPT |
| Working Pressure | 15 PSI (1.03 bar) | Mounting Type | Spin Collar, 2 in. male NPT |
| Max Working Temp | -20° F to 125° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Corrosion Resistant Diecast Aluminum |
| Fuse | 25 amps | Finish | Powder Coated |
| Type | Rotary Gear | Warranty | 3 Year |
| Motor | 1900, 1/5 hp | Weight | 23 lbs |
M-150S with Automatic Shut-off Nozzle
| Item # | 110000-100 | Nozzle Type | 3/4 in. FNPT Inlet. Automatic Shut-off, Unleaded |
| Pump Model # | M-150S | Dispensing Hose | 12 ft. x 3/4 in. |
| Manufacturer | GPI | Power Cord | 18 ft, Factory Installed |
| Flow Rate | 15 GPM (57 L/min) | Inlet | 1 in. FNPT |
| Duty Cycle | 30 min on / 30 min off | Outlet | 3/4 in. FNPT |
| Working Pressure | 15 PSI (1.03 bar) | Mounting Type | Spin Collar, 2 in. male NPT |
| Max Working Temp | -20° F to 125° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Corrosion Resistant Diecast Aluminum |
| Fuse | 25 amps | Finish | Powder Coated |
| Type | Rotary Gear | Warranty | 3 Year |
| Motor | 1900, 1/5 hp | Weight | 24 lbs |
G-20 with Automatic Shut-off Nozzle
| Item # | 162000-03 | Nozzle Type | 1 in. FNPT Inlet. Automatic Shut-off, Diesel |
| Pump Model # | G-20 | Dispensing Hose | 14 ft. x 1 in. |
| Manufacturer | GPI | Power Cord | 18 ft, Factory Installed |
| Flow Rate | 20 GPM (76 L/min) | Inlet | 1 in. FNPT |
| Duty Cycle | 30 min on / 30 min off | Outlet | 1 in. FNPT |
| Working Pressure | 12 PSI (0.82 bar) | Mounting Type | Spin Collar, 2 in. male NPT |
| Max Working Temp | -22° F to 131° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Corrosion Resistant Diecast Aluminum |
| Fuse | 40 amps | Finish | Powder Coated |
| Type | Rotary Gear | Warranty | Limited Lifetime Warranty |
| Motor | 2000, 4/10 hp | Weight | 34.8 lbs |
V-25 with Automatic Shut-off Nozzle
| Item # | 170000-03 | Nozzle Type | 1 in. FNPT Inlet. Automatic Shut-off, Diesel |
| Pump Model # | V-25 | Dispensing Hose | 18 ft. x 1 in. |
| Manufacturer | GPI | Power Cord | 18 ft, Factory Installed |
| Flow Rate | 25 GPM (94 L/min) | Inlet | 1 in. FNPT |
| Duty Cycle | 30 min on / 30 min off | Outlet | 1 in. FNPT |
| Working Pressure | 20 PSI (1.38 bar) | Mounting Type | Direct Mount, 2 in. male NPT |
| Max Working Temp | -20° F to 125° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Cast Iron |
| Fuse | 40 amps | Finish | Powder Coated |
| Type | Carbon Vane | Warranty | 5 Year pump warranty |
| Motor | 1620, 4/10 hp | Weight | 57 lbs |
Meter Specifications
0A1 Digital Fuel Meter
| Item # | 113255-1 | Totals | Batch & Cumulative Totals, 4-digit LCD |
| Meter Model # | 01A31GM | Field Calibration | No |
| Manufacturer | GPI | Powered by | (2) AAA Alkaline Batteries |
| Flow Range | 3-30 GPM (10-100 L/min) | Inlet | 1 in. FNPT |
| Accuracy | +/- 2.5% | Outlet | 1 in. FNPT |
| Working Pressure | 300 PSI (20.7 bar) | Type | Turbine |
| Max Working Temp | 14° to 130° F | Housing | Corrosion Resistant Diecast Aluminum |
| Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene | Warranty | 2 Year |
M30 Mechanical Fuel Meter
| Item # | 165100-01 | Totals | Batch Total up to 999.9, Cumulative up to 999,999.9 |
| Meter Model # | M30-G8N | Field Calibration | Yes |
| Manufacturer | GPI | Compatible Pump Models | G-20; V-25 |
| Flow Range | 5 - 30 GPM (19-114 L/mn) | Inlet | 1 in. FNPT |
| Accuracy | +/- 2% | Outlet | 1 in. FNPT |
| Working Pressure | 50 PSI (3.45 bar) | Type | Nutating Disc |
| Max Working Temp | -20° F to 125° F | Housing | Corrosion Resistant Diecast Aluminum |
| Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene | Warranty | 5 Year |
Package Contents
(1) 66 – Gal Tank
(1) Pump
(1) Hose
(1) Nozzle
(1) Fuel Filter
(1) Spinsecure Fuel Cap
(1) Mechanical Sending Unit
(1) ROV Valve
(1) Mounting hardware
(1) Meter (Optional)
