4520

$1,332.00$2,255.00

SKU: 4520 Categories: ,

Description

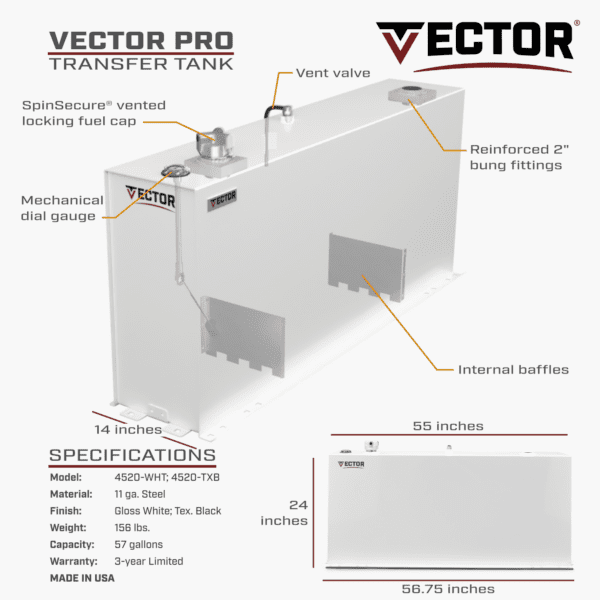

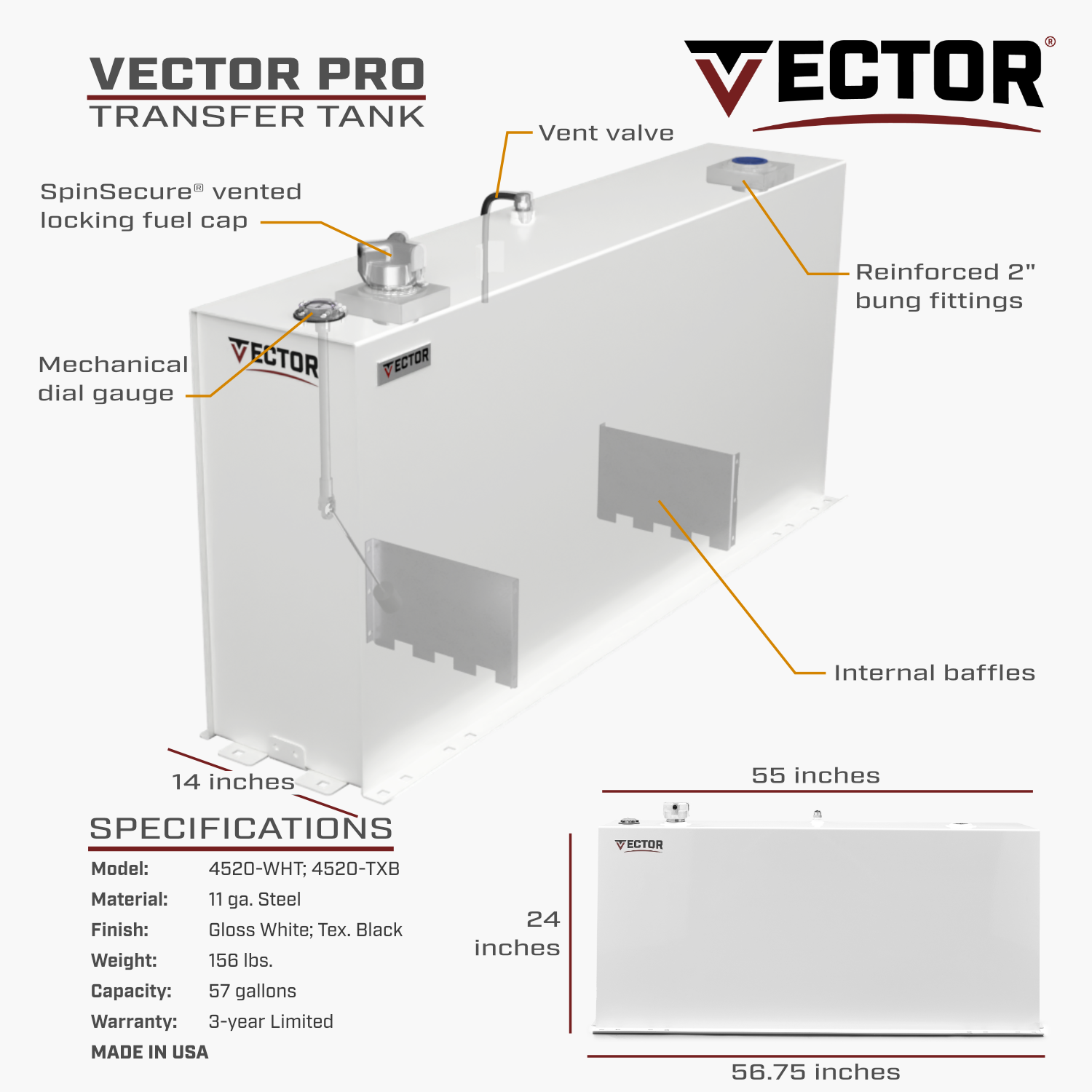

The Pro series is built right here in the United States using 11 gauge material with a durable powder coated finish. Every Pro system comes with filter and all related hardware to assemble and install it. A Spin Secure locking gas gap and a mechanical fuel gauge is also on every tank. Choosing the Pro series allows you to choose a pump and nozzle depending on your requirements. A fuel meter is also available.

Additional information

Weight N/A
Dimensions 60 × 40 × 32 in
Pump/Nozzle

, , , ,

Meter

, ,

Color

Black, Sky White

Capacity: 64 Gallon
Material: 11 Gauge Steel
Anti-Slosh: Internal Baffles
Gauge: Sending Unit w/Mechanical Sight Gauge
Fuel Cap: Spin Secure Locking Fuel Cap
Pressure Relief: Die Cast ROV Valve
Construction: Laser Cut & Robotically Welded
Powder Coated Exterior
Overfill Restriction
Pressure Tested
Integrated Mounting System
Made in the USA
Tank Model # 4520-WHY, 4520-BLK Shape Rectangle
Manufacturer VECTOR Mounting Hardware Included Yes
Warranty 3 Year, Limited Warranty Pressure relief ROV valve
Capacity 64 Gallons Gas Cap Spin Secure Locking Gas Cap
Working Capacity 61 Gallons Auxillary Convertible No
Compatible Fuel Diesel DOT Approved No
Anti-Slosh Internal Baffles Product Weight 156 lbs
Material 11 Gauge Steel Shipping Weight -

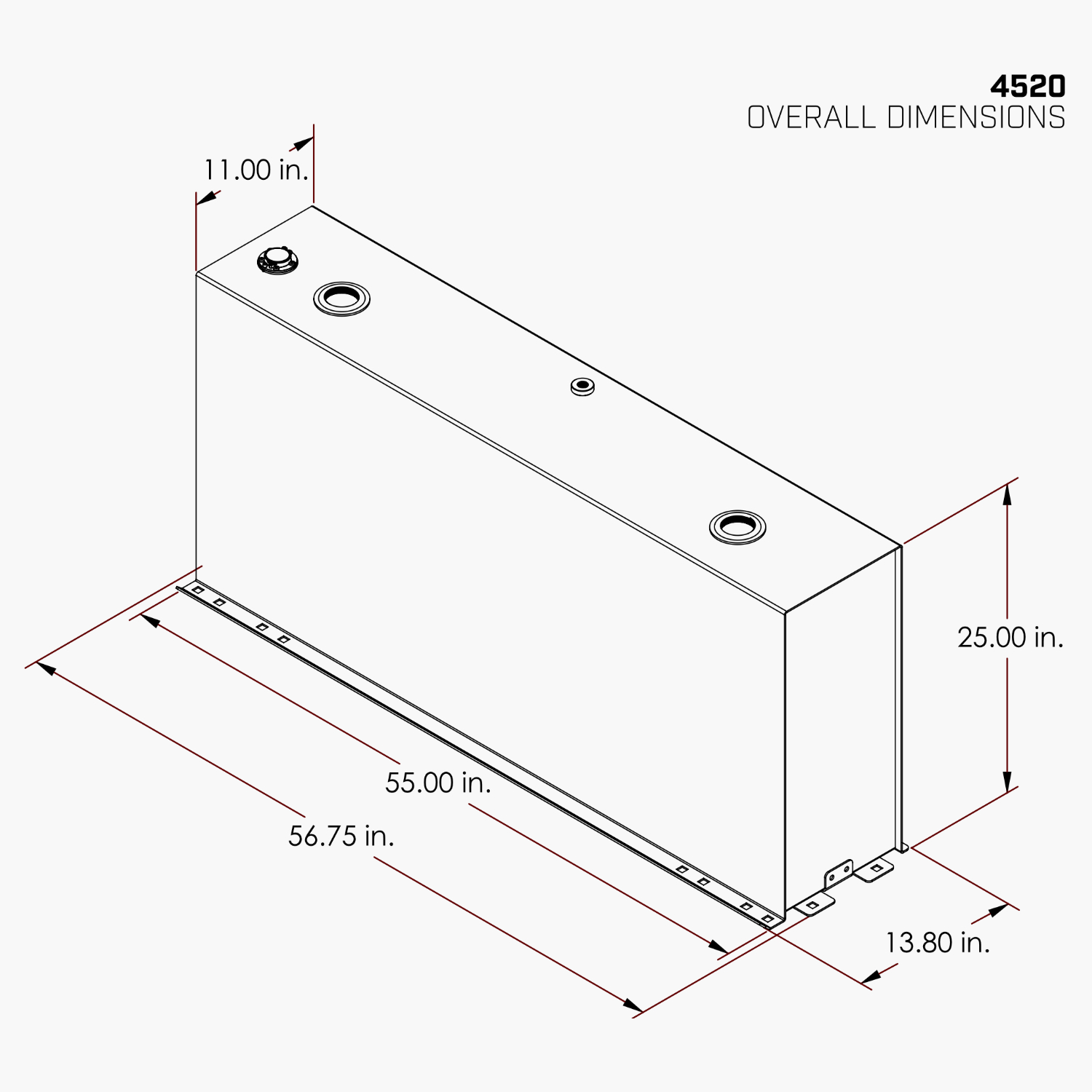

Tank Finish Powdercoated (SKY WHITE)(TEXTURED BLACK) Dimensions 56.75 x 25 x 13.80
Gauge Mechanical Sending Unit Shipping Dimensions 60 x 48 x 32
EZ-8 with Manual Shut-off Nozzle
Item # 137100-01 Nozzle Type 3/4 in. FNPT Inlet. Manual Shut-off, Unleaded
Pump Model # EZ-8 Dispensing Hose 10 ft. x 5/8 in.
Manufacturer GPI Power Cord 15 ft, Factory Installed
Flow Rate 8 GPM (Gas station equivalent) Inlet 1 in. FNPT
Duty Cycle 15 min on / 30 min off Outlet 3/4 in. FNPT
Working Pressure 15 PSI (1.03 bar) Mounting Type Direct Mount, 2 in. male NPT
Max Working Temp -20° F to 125° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Corrosion Resistant Diecast Aluminum
Fuse 20 amps Finish Powder Coated
Type Rotary Gear Warranty 3 Year
Motor 2100, 1/10hp Weight 16 lbs
M-150S with Manual Shut-off Nozzle
Item # 110000-99 Nozzle Type 3/4 in. FNPT Inlet. Manual Shut-off, Unleaded
Pump Model # M-150S Dispensing Hose 12 ft. x 3/4 in.
Manufacturer GPI Power Cord 18 ft, Factory Installed
Flow Rate 15 GPM (57 L/min) Inlet 1 in. FNPT
Duty Cycle 30 min on / 30 min off Outlet 3/4 in. FNPT
Working Pressure 15 PSI (1.03 bar) Mounting Type Spin Collar, 2 in. male NPT
Max Working Temp -20° F to 125° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Corrosion Resistant Diecast Aluminum
Fuse 25 amps Finish Powder Coated
Type Rotary Gear Warranty 3 Year
Motor 1900, 1/5 hp Weight 23 lbs
M-150S with Automatic Shut-off Nozzle
Item # 110000-100 Nozzle Type 3/4 in. FNPT Inlet. Automatic Shut-off, Unleaded
Pump Model # M-150S Dispensing Hose 12 ft. x 3/4 in.
Manufacturer GPI Power Cord 18 ft, Factory Installed
Flow Rate 15 GPM (57 L/min) Inlet 1 in. FNPT
Duty Cycle 30 min on / 30 min off Outlet 3/4 in. FNPT
Working Pressure 15 PSI (1.03 bar) Mounting Type Spin Collar, 2 in. male NPT
Max Working Temp -20° F to 125° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Corrosion Resistant Diecast Aluminum
Fuse 25 amps Finish Powder Coated
Type Rotary Gear Warranty 3 Year
Motor 1900, 1/5 hp Weight 24 lbs
G-20 with Automatic Shut-off Nozzle
Item # 162000-03 Nozzle Type 1 in. FNPT Inlet. Automatic Shut-off, Diesel
Pump Model # G-20 Dispensing Hose 14 ft. x 1 in.
Manufacturer GPI Power Cord 18 ft, Factory Installed
Flow Rate 20 GPM (76 L/min) Inlet 1 in. FNPT
Duty Cycle 30 min on / 30 min off Outlet 1 in. FNPT
Working Pressure 12 PSI (0.82 bar) Mounting Type Spin Collar, 2 in. male NPT
Max Working Temp -22° F to 131° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Corrosion Resistant Diecast Aluminum
Fuse 40 amps Finish Powder Coated
Type Rotary Gear Warranty Limited Lifetime Warranty
Motor 2000, 4/10 hp Weight 34.8 lbs
V-25 with Automatic Shut-off Nozzle
Item # 170000-03 Nozzle Type 1 in. FNPT Inlet. Automatic Shut-off, Diesel
Pump Model # V-25 Dispensing Hose 18 ft. x 1 in.
Manufacturer GPI Power Cord 18 ft, Factory Installed
Flow Rate 25 GPM (94 L/min) Inlet 1 in. FNPT
Duty Cycle 30 min on / 30 min off Outlet 1 in. FNPT
Working Pressure 20 PSI (1.38 bar) Mounting Type Direct Mount, 2 in. male NPT
Max Working Temp -20° F to 125° F Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene
Input 12V (DC) Housing Cast Iron
Fuse 40 amps Finish Powder Coated
Type Carbon Vane Warranty 5 Year pump warranty
Motor 1620, 4/10 hp Weight 57 lbs
0A1 Digital Fuel Meter
Item # 113255-1 Totals Batch & Cumulative Totals, 4-digit LCD
Meter Model # 01A31GM Field Calibration No
Manufacturer GPI Powered by (2) AAA Alkaline Batteries
Flow Range 3-30 GPM (10-100 L/min) Inlet 1 in. FNPT
Accuracy +/- 2.5% Outlet 1 in. FNPT
Working Pressure 300 PSI (20.7 bar) Type Turbine
Max Working Temp 14° to 130° F Housing Corrosion Resistant Diecast Aluminum
Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene Warranty 2 Year
M30 Mechanical Fuel Meter
Item # 165100-01 Totals Batch Total up to 999.9, Cumulative up to 999,999.9
Meter Model # M30-G8N Field Calibration Yes
Manufacturer GPI Compatible Pump Models G-20; V-25
Flow Range 5 - 30 GPM (19-114 L/mn) Inlet 1 in. FNPT
Accuracy +/- 2% Outlet 1 in. FNPT
Working Pressure 50 PSI (3.45 bar) Type Nutating Disc
Max Working Temp -20° F to 125° F Housing Corrosion Resistant Diecast Aluminum
Compatible Fuels Gasoline up to E15; Diesel up to B20; Kerosene Warranty 5 Year
(1) 64 – Gal Tank
(1) Pump
(1) Hose
(1) Nozzle
(1) Fuel Filter
(1) Spinsecure Fuel Cap
(1) Mechanical Sending Unit
(1) ROV Valve
(1) Mounting hardware
(1) Meter (Optional)
