108 Gallon

Starts at: $1,884.00

SKU: 4521-GRY Category:

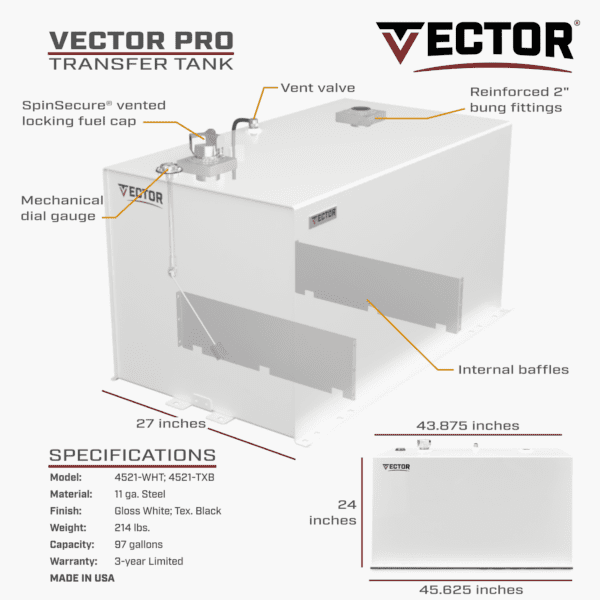

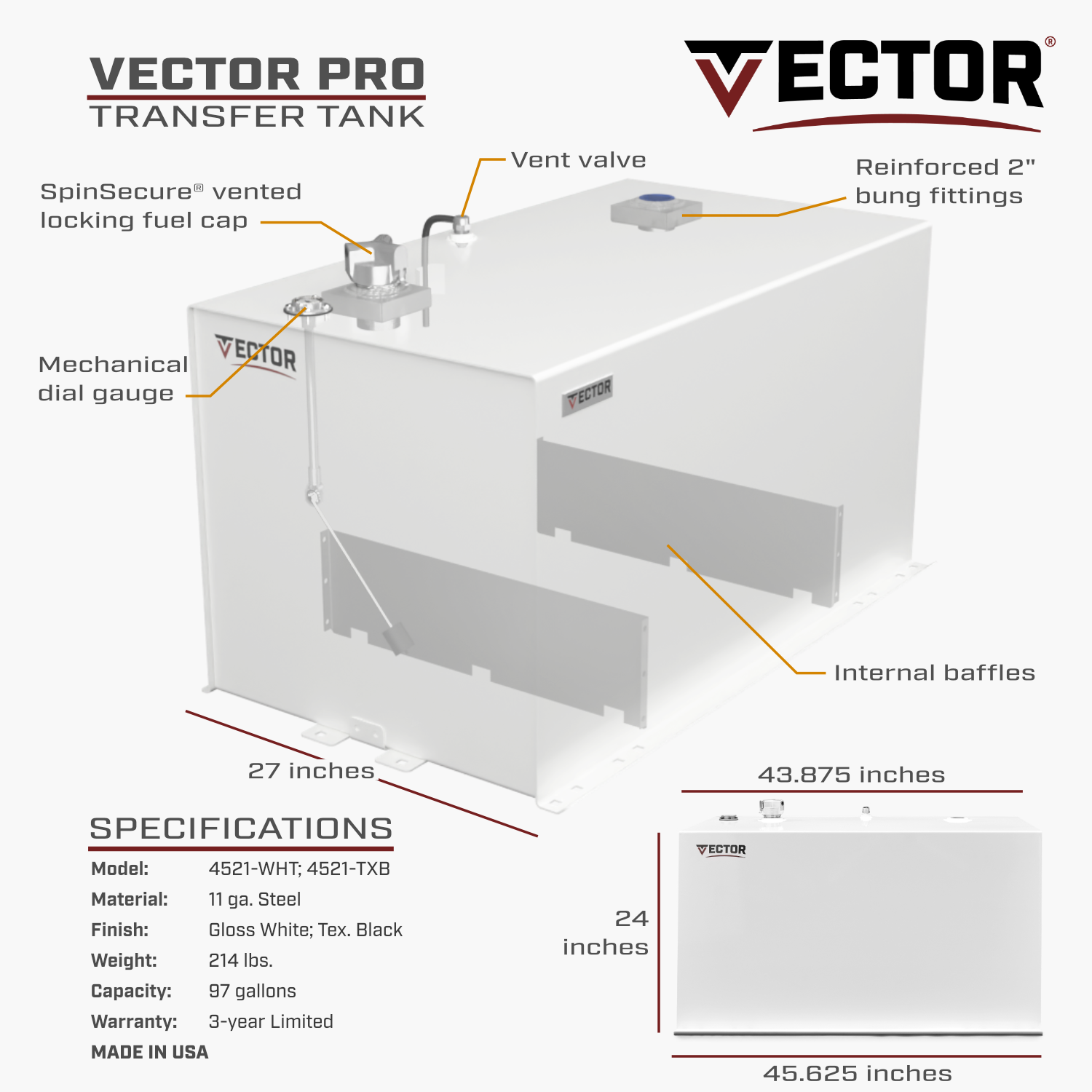

The Pro series is built right here in the United States using 11 gauge material with a durable powder coated finish. Every Pro system comes with filter and all related hardware to assemble and install it. A Spin Secure locking gas gap and a mechanical fuel gauge is also on every tank. Choosing the Pro series allows you to choose a pump and nozzle depending on your requirements. A fuel meter is also available.

Additional information

Weight 252 lbs
Dimensions 60 × 48 × 32 in
Pump/Nozzle

EZ-8 8 GPM Pump, M-150S 15 GPM Pump / Manual Shut-Off, M-150S 15 GPM Pump / Auto Shut-Off, G-20 20 GPM Pump, V-25 25 GPM Pump

Features

Pro Features: 108 Gallon

Capacity:108 Gallon
Material:11 Gauge Steel
Anti-Slosh:Internal Baffles
Gauge:Sending Unit w/Mechanical Sight Gauge
Fuel Cap:Spin Secure Locking Fuel Cap
Pressure Relief:Die Cast ROV Valve
Construction:Laser Cut & Robotically Welded
Powder Coated Exterior
Overfill Restriction
Pressure Tested
Integrated Mounting System
Made in the USA

Tank Specifications

Tank Model #4521-GRYShapeRectangle
ManufacturerVECTORMounting Hardware IncludedYes
Warranty3 Year, Limited WarrantyPressure reliefROV valve
Capacity108 GallonsGas CapSpin Secure Locking Gas Cap
Working Capacity102 GallonsAuxillary ConvertibleNo
Compatible FuelDieselDOT ApprovedNo
Anti-Slosh Internal BafflesProduct Weight214 lbs
Material11 Gauge SteelShipping Weight -

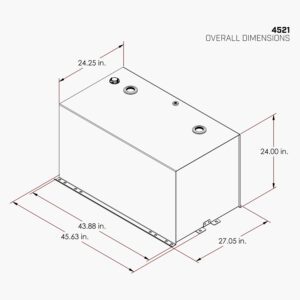

Tank Finish Powdercoated (ICE Gray)(PPG PCT79105)Dimensions 43.88 x 24 x 27.05
GaugeMechanical Sending UnitShipping Dimensions60 x 48 x 32

4521 SKELETON - 108 Gallon - Vector

Pro Colors

Pump Specifications

EZ-8 with Manual Shut-off Nozzle

Item #137100-01Nozzle Type3/4 in. FNPT Inlet. Manual Shut-off, Unleaded
Pump Model #EZ-8Dispensing Hose10 ft. x 5/8 in.
ManufacturerGPIPower Cord15 ft, Factory Installed
Flow Rate8 GPM (Gas station equivalent)Inlet1 in. FNPT
Duty Cycle15 min on / 30 min offOutlet3/4 in. FNPT
Working Pressure15 PSI (1.03 bar)Mounting TypeDirect Mount, 2 in. male NPT
Max Working Temp-20° F to 125° F Compatible FuelsGasoline up to E15; Diesel up to B20; Kerosene
Input12V (DC)HousingCorrosion Resistant Diecast Aluminum
Fuse20 ampsFinishPowder Coated
TypeRotary GearWarranty3 Year
Motor2100, 1/10hpWeight16 lbs

M-150S with Manual Shut-off Nozzle

Item #110000-99Nozzle Type3/4 in. FNPT Inlet. Manual Shut-off, Unleaded
Pump Model #M-150SDispensing Hose12 ft. x 3/4 in.
ManufacturerGPIPower Cord18 ft, Factory Installed
Flow Rate15 GPM (57 L/min)Inlet1 in. FNPT
Duty Cycle30 min on / 30 min offOutlet3/4 in. FNPT
Working Pressure15 PSI (1.03 bar)Mounting TypeSpin Collar, 2 in. male NPT
Max Working Temp-20° F to 125° F Compatible FuelsGasoline up to E15; Diesel up to B20; Kerosene
Input12V (DC)HousingCorrosion Resistant Diecast Aluminum
Fuse25 ampsFinishPowder Coated
TypeRotary GearWarranty3 Year
Motor1900, 1/5 hpWeight23 lbs

M-150S with Automatic Shut-off Nozzle

Item #110000-100Nozzle Type3/4 in. FNPT Inlet. Automatic Shut-off, Unleaded
Pump Model #M-150SDispensing Hose12 ft. x 3/4 in.
ManufacturerGPIPower Cord18 ft, Factory Installed
Flow Rate15 GPM (57 L/min)Inlet1 in. FNPT
Duty Cycle30 min on / 30 min offOutlet3/4 in. FNPT
Working Pressure15 PSI (1.03 bar)Mounting TypeSpin Collar, 2 in. male NPT
Max Working Temp-20° F to 125° F Compatible FuelsGasoline up to E15; Diesel up to B20; Kerosene
Input12V (DC)HousingCorrosion Resistant Diecast Aluminum
Fuse25 ampsFinishPowder Coated
TypeRotary GearWarranty3 Year
Motor1900, 1/5 hpWeight24 lbs

G-20 with Automatic Shut-off Nozzle

Item #162000-03Nozzle Type1 in. FNPT Inlet. Automatic Shut-off, Diesel
Pump Model #G-20Dispensing Hose14 ft. x 1 in.
ManufacturerGPIPower Cord18 ft, Factory Installed
Flow Rate20 GPM (76 L/min)Inlet1 in. FNPT
Duty Cycle30 min on / 30 min offOutlet1 in. FNPT
Working Pressure12 PSI (0.82 bar)Mounting TypeSpin Collar, 2 in. male NPT
Max Working Temp-22° F to 131° FCompatible FuelsGasoline up to E15; Diesel up to B20; Kerosene
Input12V (DC)HousingCorrosion Resistant Diecast Aluminum
Fuse40 ampsFinishPowder Coated
TypeRotary GearWarrantyLimited Lifetime Warranty
Motor2000, 4/10 hpWeight34.8 lbs

V-25 with Automatic Shut-off Nozzle

Item #170000-03Nozzle Type1 in. FNPT Inlet. Automatic Shut-off, Diesel
Pump Model #V-25Dispensing Hose18 ft. x 1 in.
ManufacturerGPIPower Cord18 ft, Factory Installed
Flow Rate25 GPM (94 L/min)Inlet1 in. FNPT
Duty Cycle30 min on / 30 min offOutlet1 in. FNPT
Working Pressure20 PSI (1.38 bar)Mounting TypeDirect Mount, 2 in. male NPT
Max Working Temp-20° F to 125° FCompatible FuelsGasoline up to E15; Diesel up to B20; Kerosene
Input12V (DC)HousingCast Iron
Fuse40 ampsFinishPowder Coated
TypeCarbon VaneWarranty5 Year pump warranty
Motor1620, 4/10 hpWeight57 lbs

Meter Specifications

0A1 Digital Fuel Meter

Item #113255-1TotalsBatch & Cumulative Totals, 4-digit LCD
Meter Model #01A31GMField CalibrationNo
ManufacturerGPIPowered by(2) AAA Alkaline Batteries
Flow Range3-30 GPM (10-100 L/min)Inlet1 in. FNPT
Accuracy+/- 2.5%Outlet1 in. FNPT
Working Pressure300 PSI (20.7 bar)TypeTurbine
Max Working Temp14° to 130° FHousingCorrosion Resistant Diecast Aluminum
Compatible FuelsGasoline up to E15; Diesel up to B20; KeroseneWarranty2 Year

M30 Mechanical Fuel Meter

Item #165100-01TotalsBatch Total up to 999.9, Cumulative up to 999,999.9
Meter Model #M30-G8NField CalibrationYes
ManufacturerGPICompatible Pump ModelsG-20; V-25
Flow Range5 - 30 GPM (19-114 L/mn)Inlet1 in. FNPT
Accuracy+/- 2%Outlet1 in. FNPT
Working Pressure50 PSI (3.45 bar)TypeNutating Disc
Max Working Temp-20° F to 125° FHousingCorrosion Resistant Diecast Aluminum
Compatible FuelsGasoline up to E15; Diesel up to B20; KeroseneWarranty5 Year

Package Contents

(1) 108 – Gal Tank
(1) Pump
(1) Hose
(1) Nozzle
(1) Fuel Filter
(1) Spinsecure Fuel Cap
(1) Mechanical Sending Unit
(1) ROV Valve
(1) Mounting hardware
(1) Meter (Optional)
