PRO TANK SERIES
4463
Price range: $1,134.00 through $2,459.97
- Description
- Additional information
- Features
- Tank Specifications
- Pump Specifications
- Meter Specifications
- Package Contents
Description

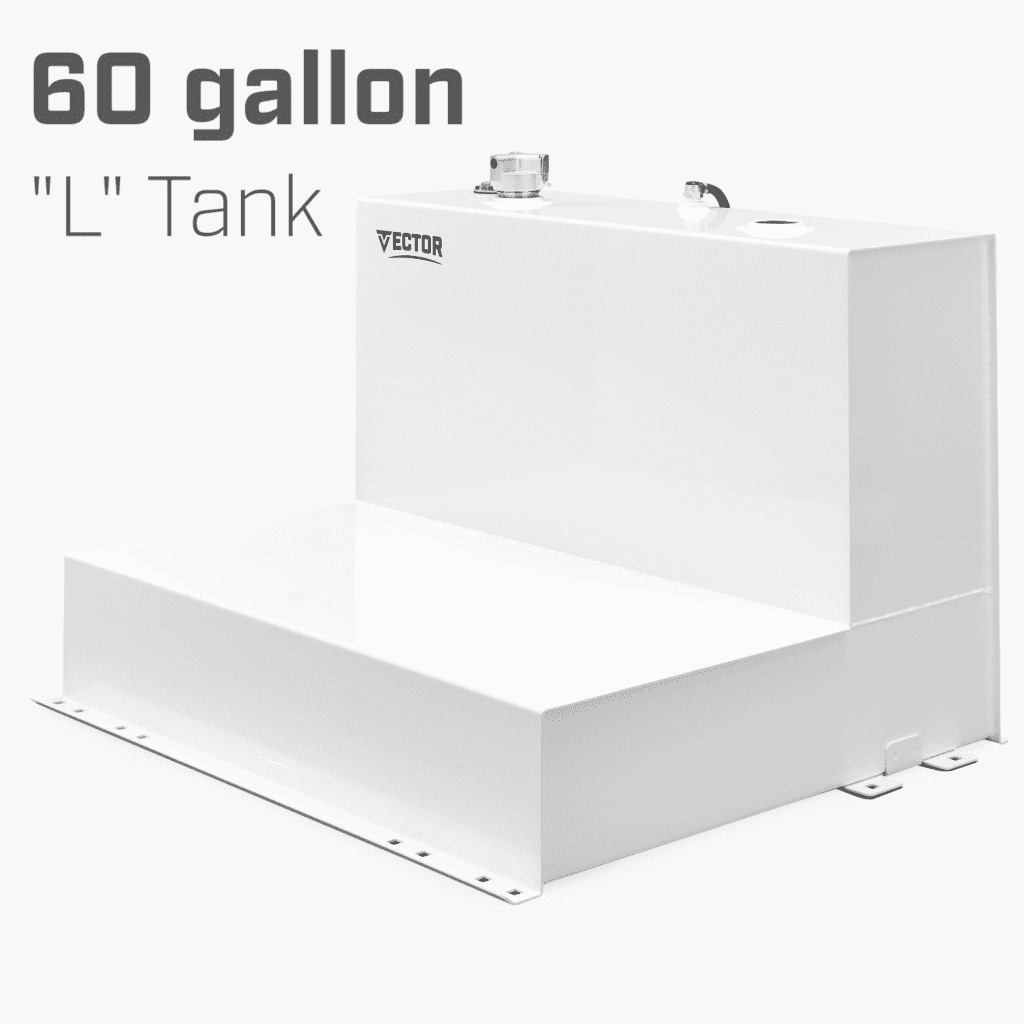

The Pro series is built right here in the United States using 11 gauge material with a durable powder coated finish. Every Pro system comes with filter and all related hardware to assemble and install it. A Spin Secure locking gas gap and a mechanical fuel gauge is also on every tank. Choosing the Pro series allows you to choose a pump and nozzle depending on your requirements. A fuel meter is also available.
Additional information
| Weight | 190 lbs |
|---|---|
| Dimensions | 60 × 40 × 32 in |
| Color | Black, Sky White |
| Pump/Nozzle | No Pump, 8 GPM GPI Pump EZ-8, 15 GPM GPI Pump M-150S/ Manual Shut-Off, 15 GPM GPI Pump M-150S/ Auto Shut-Off, 20 GPM GPI Pump G-20, 25 GPM GPI Pump V-25 |
| Meter |
| Capacity: | 60 Gallon |
| Material: | 11 Gauge Steel |
| Anti-Slosh: | Internal Baffles |
| Gauge: | Sending Unit w/Mechanical Sight Gauge |
| Fuel Cap: | Spin Secure Locking Fuel Cap |
| Pressure Relief: | Die Cast ROV Valve |
| Construction: | Laser Cut & Robotically Welded |
| Powder Coated Exterior | |
| Overfill Restriction | |
| Pressure Tested | |
| Integrated Mounting System | |
| Made in the USA |
| Tank Model # | 4463-WHT, 4463-BLK | Shape | L |
| Manufacturer | VECTOR | Mounting Hardware Included | Yes |
| Warranty | 3 Year, Limited Warranty | Pressure relief | ROV valve |
| Capacity | 63 Gallons | Gas Cap | Spin Secure Locking Gas Cap |
| Working Capacity | 60 Gallons | Auxillary Convertible | No |
| Compatible Fuel | Diesel | DOT Approved | No |
| Anti-Slosh | Internal Baffles | Product Weight | 182 lbs |
| Material | 11 Gauge Steel | Shipping Weight | - |
| Tank Finish | Powdercoated (SKY WHITE)(TEXTURED BLACK) | Dimensions | 38 x 25 x 32.8 x 7.5 x 19 |
| Gauge | Mechanical Sending Unit | Shipping Dimensions | 60 x 40 x 32 |
EZ-8 with Manual Shut-off Nozzle
| Item # | 137100-01 | Nozzle Type | 3/4 in. FNPT Inlet. Manual Shut-off, Unleaded |
| Pump Model # | EZ-8 | Dispensing Hose | 10 ft. x 5/8 in. |
| Manufacturer | GPI | Power Cord | 15 ft, Factory Installed |
| Flow Rate | 8 GPM (Gas station equivalent) | Inlet | 1 in. FNPT |
| Duty Cycle | 15 min on / 30 min off | Outlet | 3/4 in. FNPT |
| Working Pressure | 15 PSI (1.03 bar) | Mounting Type | Direct Mount, 2 in. male NPT |
| Max Working Temp | -20° F to 125° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Corrosion Resistant Diecast Aluminum |
| Fuse | 20 amps | Finish | Powder Coated |
| Type | Rotary Gear | Warranty | 3 Year |
| Motor | 2100, 1/10hp | Weight | 16 lbs |
M-150S with Manual Shut-off Nozzle
| Item # | 110000-99 | Nozzle Type | 3/4 in. FNPT Inlet. Manual Shut-off, Unleaded |
| Pump Model # | M-150S | Dispensing Hose | 12 ft. x 3/4 in. |
| Manufacturer | GPI | Power Cord | 18 ft, Factory Installed |
| Flow Rate | 15 GPM (57 L/min) | Inlet | 1 in. FNPT |
| Duty Cycle | 30 min on / 30 min off | Outlet | 3/4 in. FNPT |
| Working Pressure | 15 PSI (1.03 bar) | Mounting Type | Spin Collar, 2 in. male NPT |
| Max Working Temp | -20° F to 125° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Corrosion Resistant Diecast Aluminum |
| Fuse | 25 amps | Finish | Powder Coated |
| Type | Rotary Gear | Warranty | 3 Year |
| Motor | 1900, 1/5 hp | Weight | 23 lbs |
M-150S with Automatic Shut-off Nozzle
| Item # | 110000-100 | Nozzle Type | 3/4 in. FNPT Inlet. Automatic Shut-off, Unleaded |
| Pump Model # | M-150S | Dispensing Hose | 12 ft. x 3/4 in. |
| Manufacturer | GPI | Power Cord | 18 ft, Factory Installed |
| Flow Rate | 15 GPM (57 L/min) | Inlet | 1 in. FNPT |
| Duty Cycle | 30 min on / 30 min off | Outlet | 3/4 in. FNPT |
| Working Pressure | 15 PSI (1.03 bar) | Mounting Type | Spin Collar, 2 in. male NPT |
| Max Working Temp | -20° F to 125° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Corrosion Resistant Diecast Aluminum |
| Fuse | 25 amps | Finish | Powder Coated |
| Type | Rotary Gear | Warranty | 3 Year |
| Motor | 1900, 1/5 hp | Weight | 24 lbs |
G-20 with Automatic Shut-off Nozzle
| Item # | 162000-03 | Nozzle Type | 1 in. FNPT Inlet. Automatic Shut-off, Diesel |
| Pump Model # | G-20 | Dispensing Hose | 14 ft. x 1 in. |
| Manufacturer | GPI | Power Cord | 18 ft, Factory Installed |
| Flow Rate | 20 GPM (76 L/min) | Inlet | 1 in. FNPT |
| Duty Cycle | 30 min on / 30 min off | Outlet | 1 in. FNPT |
| Working Pressure | 12 PSI (0.82 bar) | Mounting Type | Spin Collar, 2 in. male NPT |
| Max Working Temp | -22° F to 131° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Corrosion Resistant Diecast Aluminum |
| Fuse | 40 amps | Finish | Powder Coated |
| Type | Rotary Gear | Warranty | Limited Lifetime Warranty |
| Motor | 2000, 4/10 hp | Weight | 34.8 lbs |
V-25 with Automatic Shut-off Nozzle
| Item # | 170000-03 | Nozzle Type | 1 in. FNPT Inlet. Automatic Shut-off, Diesel |
| Pump Model # | V-25 | Dispensing Hose | 18 ft. x 1 in. |
| Manufacturer | GPI | Power Cord | 18 ft, Factory Installed |
| Flow Rate | 25 GPM (94 L/min) | Inlet | 1 in. FNPT |
| Duty Cycle | 30 min on / 30 min off | Outlet | 1 in. FNPT |
| Working Pressure | 20 PSI (1.38 bar) | Mounting Type | Direct Mount, 2 in. male NPT |
| Max Working Temp | -20° F to 125° F | Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene |
| Input | 12V (DC) | Housing | Cast Iron |
| Fuse | 40 amps | Finish | Powder Coated |
| Type | Carbon Vane | Warranty | 5 Year pump warranty |
| Motor | 1620, 4/10 hp | Weight | 57 lbs |
0A1 Digital Fuel Meter
| Item # | 113255-1 | Totals | Batch & Cumulative Totals, 4-digit LCD |
| Meter Model # | 01A31GM | Field Calibration | No |
| Manufacturer | GPI | Powered by | (2) AAA Alkaline Batteries |
| Flow Range | 3-30 GPM (10-100 L/min) | Inlet | 1 in. FNPT |
| Accuracy | +/- 2.5% | Outlet | 1 in. FNPT |
| Working Pressure | 300 PSI (20.7 bar) | Type | Turbine |
| Max Working Temp | 14° to 130° F | Housing | Corrosion Resistant Diecast Aluminum |
| Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene | Warranty | 2 Year |
M30 Mechanical Fuel Meter
| Item # | 165100-01 | Totals | Batch Total up to 999.9, Cumulative up to 999,999.9 |
| Meter Model # | M30-G8N | Field Calibration | Yes |
| Manufacturer | GPI | Compatible Pump Models | G-20; V-25 |
| Flow Range | 5 - 30 GPM (19-114 L/mn) | Inlet | 1 in. FNPT |
| Accuracy | +/- 2% | Outlet | 1 in. FNPT |
| Working Pressure | 50 PSI (3.45 bar) | Type | Nutating Disc |
| Max Working Temp | -20° F to 125° F | Housing | Corrosion Resistant Diecast Aluminum |
| Compatible Fuels | Gasoline up to E15; Diesel up to B20; Kerosene | Warranty | 5 Year |
| (1) 60 – Gal Tank |
| (1) Pump |
| (1) Hose |
| (1) Nozzle |
| (1) Fuel Filter |
| (1) Spinsecure Fuel Cap |
| (1) Mechanical Sending Unit |
| (1) ROV Valve |
| (1) Mounting hardware |
| (1) Meter (Optional) |
[rev_slider slidertitle=”Pro Slider” alias=”slider-1″]
FUEL WITH
CONFIDENCE
Practical and versatile, these tanks are built to work day in and day out. Made from heavy-duty 11-gauge steel, a premium powder coat finish and robotically welded seams these tanks are designed to outlast the truck bed they’re mounted to.
Plus, every Vector Tank comes with a 3-Year, Limited Warranty!
VECTOR TANK PRO
6965-WHT
EASY INSTALLATION
With all components included with the product, the Vector Tank Elite installs in little to no time. With an integrated mounting system and all mounting hardware included, which minimizes your set up time.
